PATT0603K8R45FGT1
RES SMD 8.45 OHM 1% 0.15W 0603Manufacturer: Vishay Dale Thin Film
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Dale Thin Film PATT series resistor, part number PATT0603K8R45FGT1. This 0603 (1608 Metric) surface-mount chip resistor offers a resistance value of 8.45 Ohms with a tight ±1% tolerance. It features a power rating of 0.15W and a temperature coefficient of ±100ppm/°C. Engineered with thin film technology, this component is designed with anti-sulfur properties, moisture resistance, and is Automotive AEC-Q200 qualified, making it suitable for demanding automotive applications. Typical dimensions are 0.064" L x 0.032" W (1.63mm x 0.81mm) with a seated height of 0.018" (0.46mm). The operating temperature range is -55°C to 250°C. Supplied in Tape & Reel packaging.
Additional Information
Series: PATTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.15W |
| Tolerance | ±1% |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.064"" L x 0.032"" W (1.63mm x 0.81mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 250°C |
| Ratings | AEC-Q200 |
| Number of Terminations | 2 |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.018"" (0.46mm) |
| Failure Rate | - |
| Resistance | 8.45 Ohms |
Request a Quote
Clients Also Buy

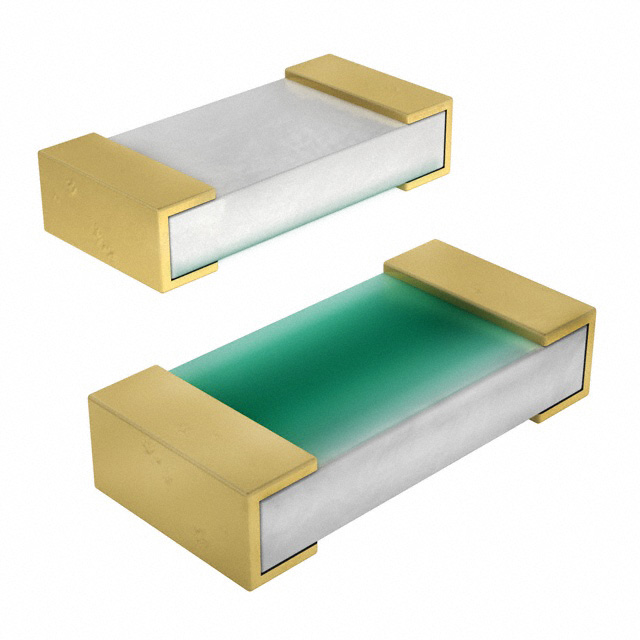

PATT0402K7R68FGT1
