M55342K09B2B21RTS
RES SMD 2.21K OHM 0.1% 1W 2512Manufacturer: Vishay Dale Thin Film
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
The Vishay Dale Thin Film M55342K09B2B21RTS is a military-grade, non-inductive thin-film chip resistor from the MIL-PRF-55342 RM2512 series. This surface-mount component offers a precise resistance value of 2.21 kOhms with a tight tolerance of ±0.1%. Engineered for demanding applications, it dissipates 1W of power and operates reliably across a wide temperature range from -55°C to 150°C. The resistor features a temperature coefficient of ±100ppm/°C. Its compact 2512 (6432 Metric) package, measuring 0.259" L x 0.124" W (6.58mm x 3.15mm) with a maximum seated height of 0.033" (0.84mm), is suitable for high-density circuit designs. This component is commonly utilized in aerospace, defense, and high-reliability industrial systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: Military, MIL-PRF-55342, RM2512RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 1W |
| Tolerance | ±0.1% |
| Features | Military, Non-Inductive |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2512 (6432 Metric) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.259"" L x 0.124"" W (6.58mm x 3.15mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 150°C |
| Number of Terminations | 2 |
| Supplier Device Package | 2512 |
| Height - Seated (Max) | 0.033"" (0.84mm) |
| Failure Rate | R (0.01%) |
| Resistance | 2.21 kOhms |
Request a Quote
Clients Also Buy

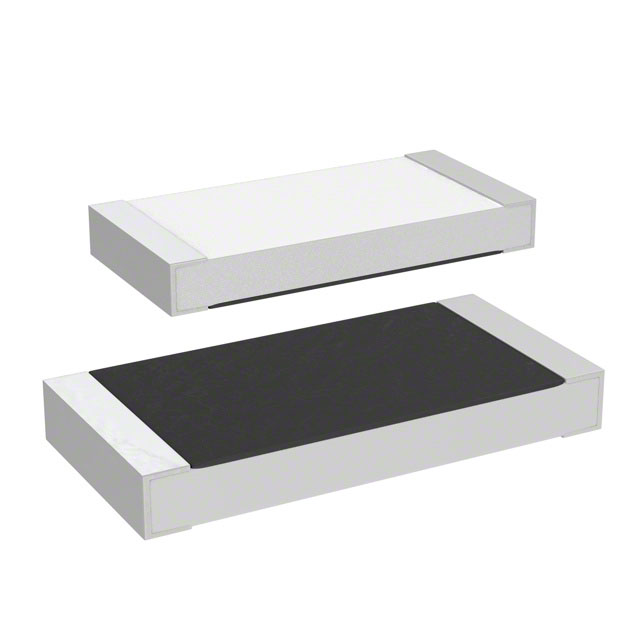

M55342E09B100ARWS
