M55342K02B255ARWS
RES SMD 255 OHM 0.1% 1/8W 0505Manufacturer: Vishay Dale Thin Film
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Dale Thin Film presents the M55342K02B255ARWS, a military-grade, non-inductive thin film chip resistor from the RM0505 series, compliant with MIL-PRF-55342. This surface-mount component offers a precise resistance value of 255 Ohms with a tight tolerance of ±0.1% and a power rating of 0.125W (1/8W). Designed for demanding applications, it operates across a temperature range of -55°C to 150°C with a temperature coefficient of ±100ppm/°C. The component is housed in a 0505 (1313 Metric) package, measuring 0.055" L x 0.050" W (1.40mm x 1.27mm) and a seated height of 0.033" (0.84mm). Its construction ensures reliability and stability, making it suitable for use in aerospace, defense, and high-reliability industrial equipment. The failure rate for this component is specified as R (0.01%).
Additional Information
Series: Military, MIL-PRF-55342, RM0505RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.125W, 1/8W |
| Tolerance | ±0.1% |
| Features | Military, Non-Inductive |
| Packaging | Tray |
| Package / Case | 0505 (1313 Metric) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.055"" L x 0.050"" W (1.40mm x 1.27mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 150°C |
| Number of Terminations | 2 |
| Supplier Device Package | 0505 |
| Height - Seated (Max) | 0.033"" (0.84mm) |
| Failure Rate | R (0.01%) |
| Resistance | 255 Ohms |
Request a Quote
Clients Also Buy

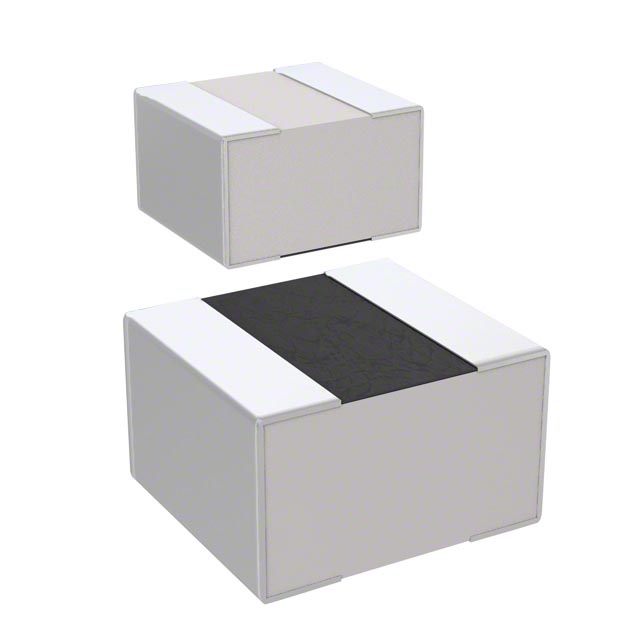

M55342E02B100ACBS
