M55342H05B22D1RWS
RES SMD 22.1 OHM 1% 0.225W 2208Manufacturer: Vishay Dale Thin Film
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Dale Thin Film's M55342H05B22D1RWS is a surface mount chip resistor from the MIL-PRF-55342 RM2208 series. Featuring a thin film composition, this component offers a resistance of 22.1 Ohms with a tight tolerance of ±1%. It is rated for 0.225W of power dissipation and operates within a temperature range of -55°C to 150°C. The resistor exhibits a non-inductive design and a temperature coefficient of ±50ppm/°C. Its compact package dimensions are 0.230" L x 0.075" W (5.84mm x 1.90mm), with a seated height of 0.033" (0.84mm). This component is suitable for demanding applications in aerospace, defense, and high-reliability industrial sectors. The failure rate for this device is specified as R (0.01%).
Additional Information
Series: Military, MIL-PRF-55342, RM2208RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.225W |
| Tolerance | ±1% |
| Features | Military, Non-Inductive |
| Packaging | Tray |
| Package / Case | Nonstandard |
| Temperature Coefficient | ±50ppm/°C |
| Size / Dimension | 0.230"" L x 0.075"" W (5.84mm x 1.90mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 150°C |
| Number of Terminations | 2 |
| Supplier Device Package | 2208 |
| Height - Seated (Max) | 0.033"" (0.84mm) |
| Failure Rate | R (0.01%) |
| Resistance | 22.1 Ohms |
Request a Quote
Clients Also Buy

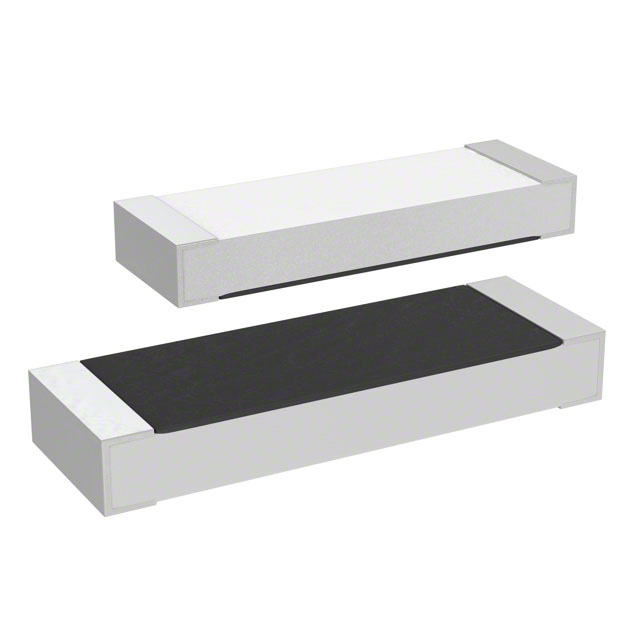

M55342E05B100BMWS
