FC0603E50R0BTBST1
RES SMD 50 OHM 0.1% 1/8W 0603Manufacturer: Vishay Dale Thin Film
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More

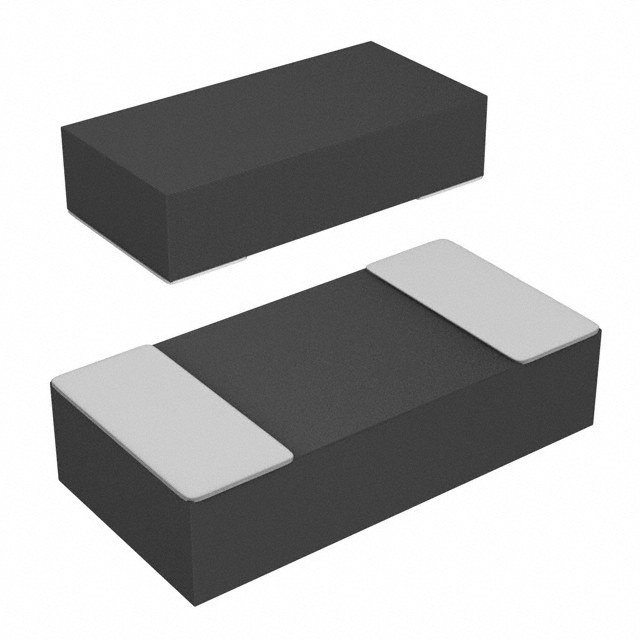

Vishay Dale Thin Film FC series 0603 (1608 Metric) chip resistor, part number FC0603E50R0BTBST1. This surface mount component offers a precise 50 Ohm resistance with a tight ±0.1% tolerance. Engineered with thin film technology, it provides a 0.125W (1/8W) power rating and a ±25ppm/°C temperature coefficient, suitable for operation across a -55°C to 155°C temperature range. Its 0603 package dimensions (1.63mm x 0.81mm) and 0.84mm seated height are designed for efficient board space utilization. Featuring RF and High Frequency characteristics, this component is commonly employed in telecommunications, aerospace, and medical equipment applications. Supplied on tape and reel.
Additional Information
Series: FCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 38 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.125W, 1/8W |
| Tolerance | ±0.1% |
| Features | RF, High Frequency |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Temperature Coefficient | ±25ppm/°C |
| Size / Dimension | 0.064"" L x 0.032"" W (1.63mm x 0.81mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.033"" (0.84mm) |
| Failure Rate | - |
| Resistance | 50 Ohms |
