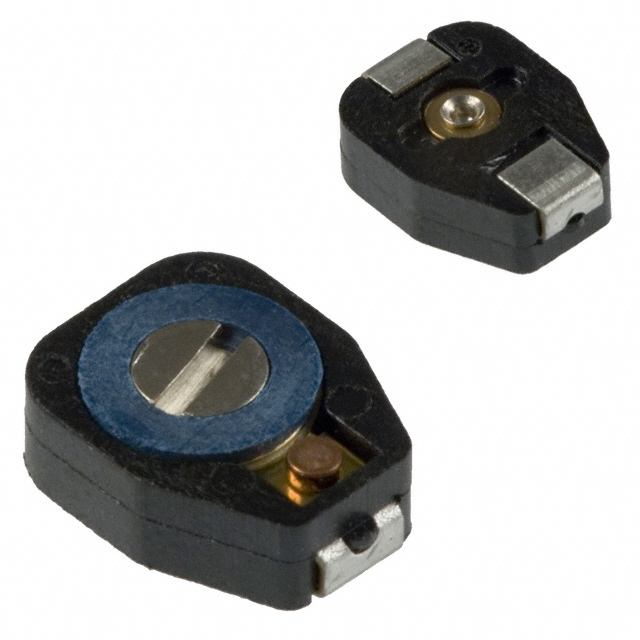

2807S0R815NHC4BAA
CAP TRIMMER 0.5-15PF 100V SMDManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Trimmers, Variable Capacitors
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components 2807S series trimmer capacitor, part number 2807S0R815NHC4BAA, offers a capacitance range of 0.5pF to 15pF with a 100V working voltage. This top-adjustable, surface-mount component features a Polytetrafluoroethylene (PTFE) dielectric and is designed for general-purpose applications. It provides a Q factor of 1000 at 10MHz and operates within a temperature range of -40°C to 85°C. The physical dimensions are 7.20mm L x 5.40mm W, with a seated height of 2.40mm. This component is commonly utilized in test and measurement equipment, and telecommunications infrastructure.
Additional Information
Series: 2807SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | General Purpose |
| Packaging | Bulk |
| Adjustment Type | Top |
| Capacitance Range | 0.5 ~ 15pF |
| Size / Dimension | 0.283"" L x 0.213"" W (7.20mm x 5.40mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Q @ Freq | 1000 @ 10MHz |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Height - Seated (Max) | 0.094"" (2.40mm) |
| Voltage - Rated | 100 V |
Request a Quote
Clients Also Buy

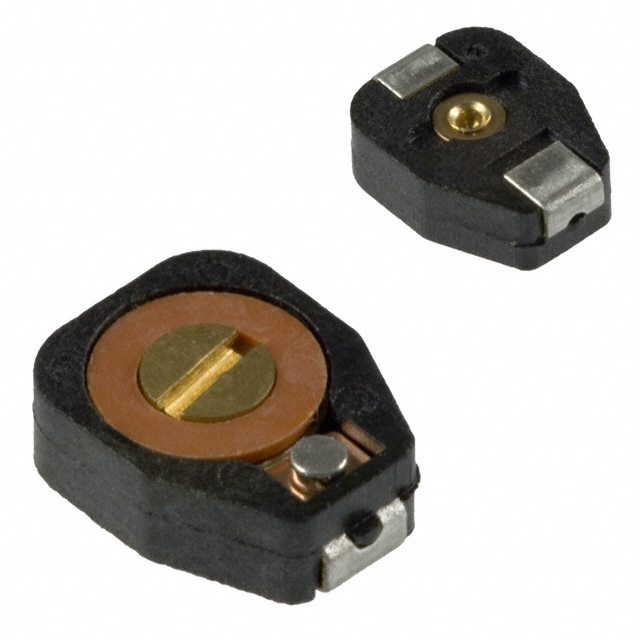

2807S0R505NHA4BAA
CAP TRIMMER 0.3-5PF 100V SMD

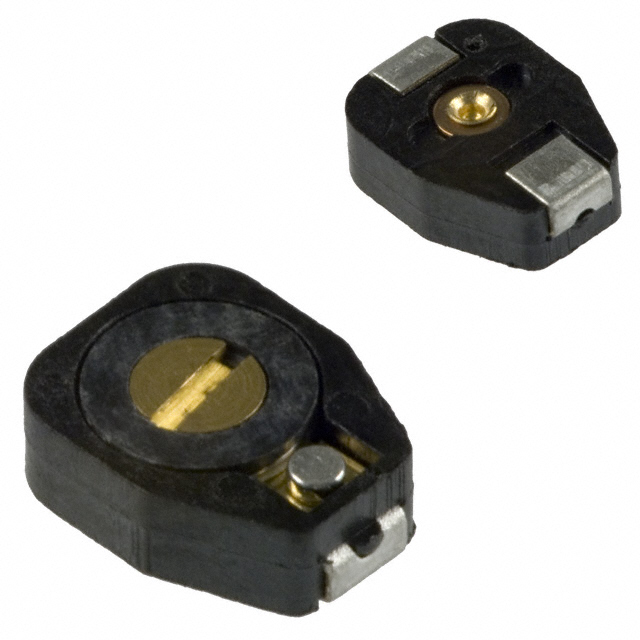

2807S0R610NHB4BAA
CAP TRIMMER 0.4-10PF 200V SMD

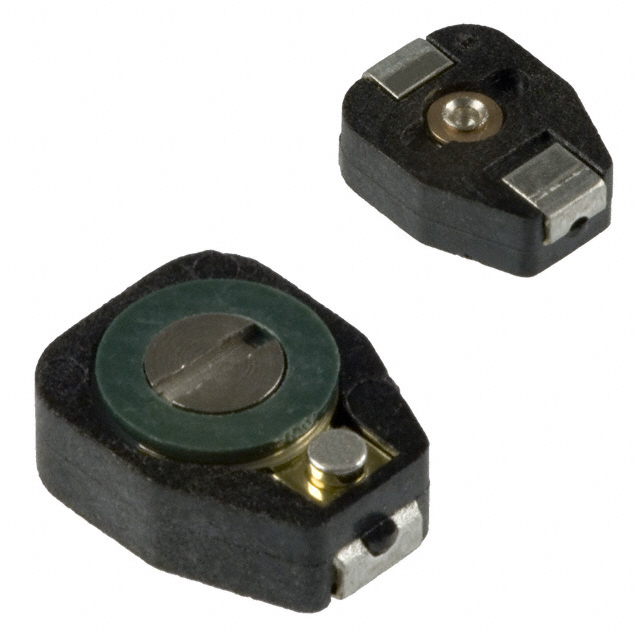

2807S1R020NHD4BAA
