SFR16S0004708JA500
RES 4.7 OHM 1/2W 5% AXIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More

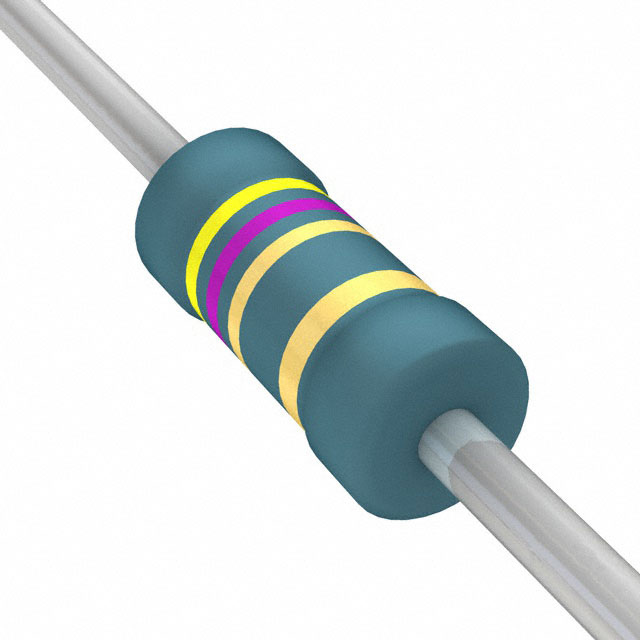

The Vishay Beyschlag/Draloric/BC Components SFR16S series resistor, part number SFR16S0004708JA500, is a 4.7 Ohm metal film through-hole resistor with a power rating of 0.5W (1/2W) and a tolerance of ±5%. This component features axial terminations and measures 1.90mm (0.075") in diameter by 3.50mm (0.138") in length. It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±250ppm/°C. The SFR16S series is commonly utilized in industrial, automotive, and consumer electronics applications. This specific device is supplied in Cut Tape (CT) packaging.
Additional Information
Series: SFR16SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±5% |
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Axial |
| Temperature Coefficient | ±250ppm/°C |
| Size / Dimension | 0.075"" Dia x 0.138"" L (1.90mm x 3.50mm) |
| Composition | Metal Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 4.7 Ohms |
