SFR16S0003908JA500
RES 3.9 OHM 1/2W 5% AXIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More

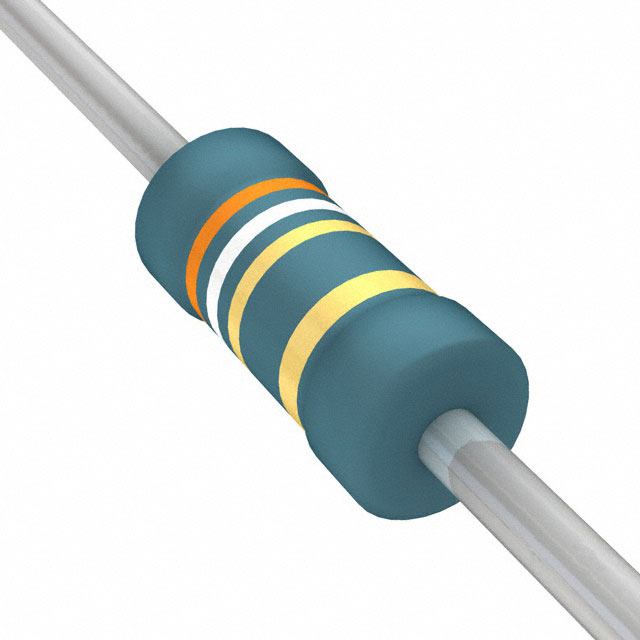

Vishay Beyschlag/Draloric/BC Components SFR16S series metal film resistor, part number SFR16S0003908JA500. This axial leaded component features a resistance value of 3.9 Ohms with a ±5% tolerance. It is rated for 0.5W (1/2W) power dissipation and operates across a temperature range of -55°C to 155°C. The resistor exhibits a temperature coefficient of ±250ppm/°C. Its dimensions are 1.90mm x 3.50mm. This component is commonly utilized in industrial, consumer electronics, and automotive applications. Packaging is provided on Tape & Box (TB).
Additional Information
Series: SFR16SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±5% |
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Axial |
| Temperature Coefficient | ±250ppm/°C |
| Size / Dimension | 0.075"" Dia x 0.138"" L (1.90mm x 3.50mm) |
| Composition | Metal Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 3.9 Ohms |
