SFR16S0003308JA500
RES 3.3 OHM 1/2W 5% AXIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More

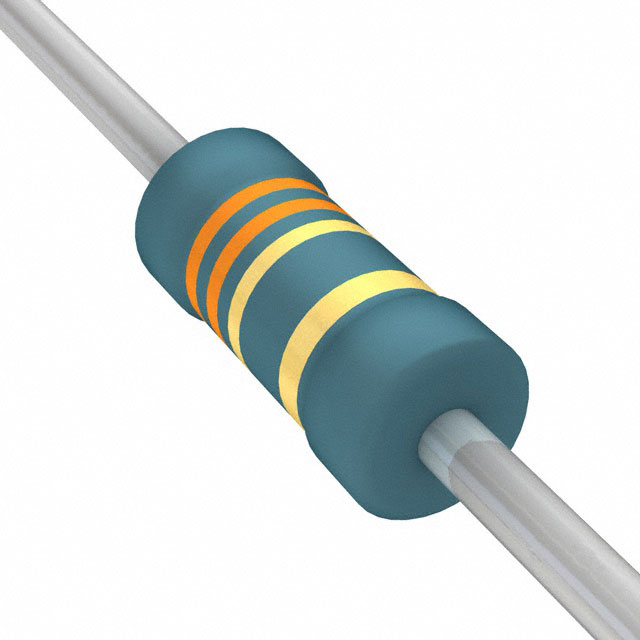

Vishay Beyschlag/Draloric/BC Components SFR16S series axial metal film resistor, part number SFR16S0003308JA500. This 3.3 Ohm resistor offers a ±5% tolerance and a power rating of 0.5W (1/2W). It features a ±250ppm/°C temperature coefficient and operates within a temperature range of -55°C to 155°C. The component has 2 terminations and an axial package with dimensions of 1.90mm x 3.50mm. Packaged in Tape & Box (TB), this resistor is suitable for applications in industrial, automotive, and consumer electronics sectors.
Additional Information
Series: SFR16SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±5% |
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Axial |
| Temperature Coefficient | ±250ppm/°C |
| Size / Dimension | 0.075"" Dia x 0.138"" L (1.90mm x 3.50mm) |
| Composition | Metal Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 3.3 Ohms |
