SFR16S0002434FA500
RES 2.43M OHM 1/2W 1% AXIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More

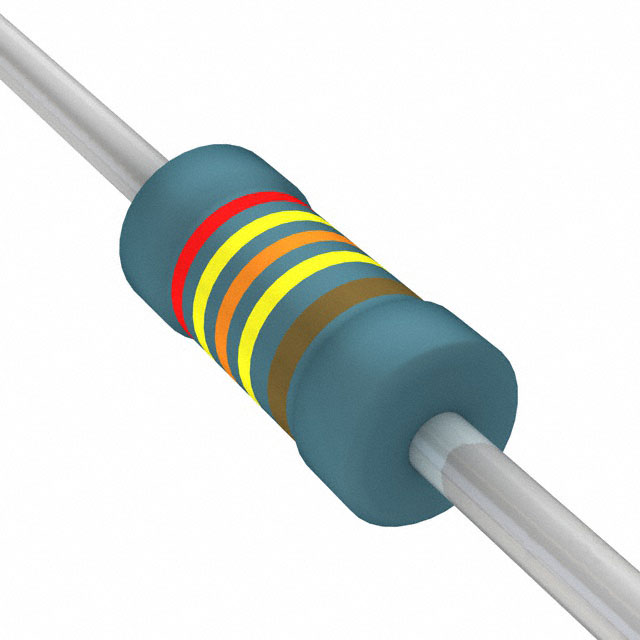

Vishay Beyschlag/Draloric/BC Components SFR16S series axial metal film resistor, part number SFR16S0002434FA500, offers a precise 2.43 MOhms resistance with a tight ±1% tolerance. This 0.5W power rated component features a low temperature coefficient of ±250ppm/°C, operating reliably across a wide temperature range of -55°C to 155°C. Its robust metal film composition and axial package, measuring 1.90mm x 3.50mm, make it suitable for demanding applications in the industrial, automotive, and telecommunications sectors. Packaged in Tape & Box (TB), this two-termination resistor is engineered for consistent performance and durability in high-reliability circuits.
Additional Information
Series: SFR16SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±1% |
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Axial |
| Temperature Coefficient | ±250ppm/°C |
| Size / Dimension | 0.075"" Dia x 0.138"" L (1.90mm x 3.50mm) |
| Composition | Metal Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 2.43 MOhms |
