SFR16S0002208JA500
RES 2.2 OHM 1/2W 5% AXIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More

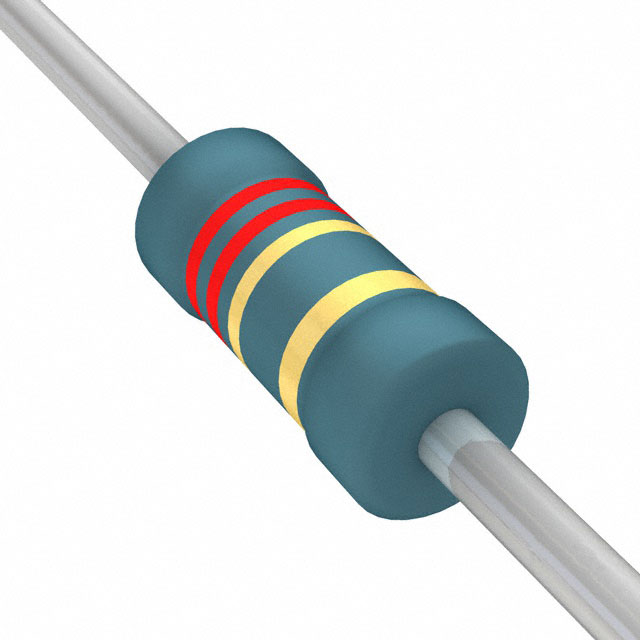

Vishay Beyschlag/Draloric/BC Components SFR16S series metal film resistor, part number SFR16S0002208JA500. This axial, through-hole component offers a resistance value of 2.2 Ohms with a tight tolerance of ±5%. It is rated for 0.5W (1/2W) power dissipation and features a temperature coefficient of ±250ppm/°C. The operating temperature range is -55°C to 155°C. The physical dimensions are 1.90mm x 3.50mm (0.075"" Dia x 0.138"" L). This component is commonly utilized in industrial, automotive, and consumer electronics applications requiring reliable performance. It is supplied in Cut Tape (CT) packaging.
Additional Information
Series: SFR16SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±5% |
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Axial |
| Temperature Coefficient | ±250ppm/°C |
| Size / Dimension | 0.075"" Dia x 0.138"" L (1.90mm x 3.50mm) |
| Composition | Metal Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 2.2 Ohms |
