SFR16S0002154FR500
RES 2.15M OHM 1/2W 1% AXIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More

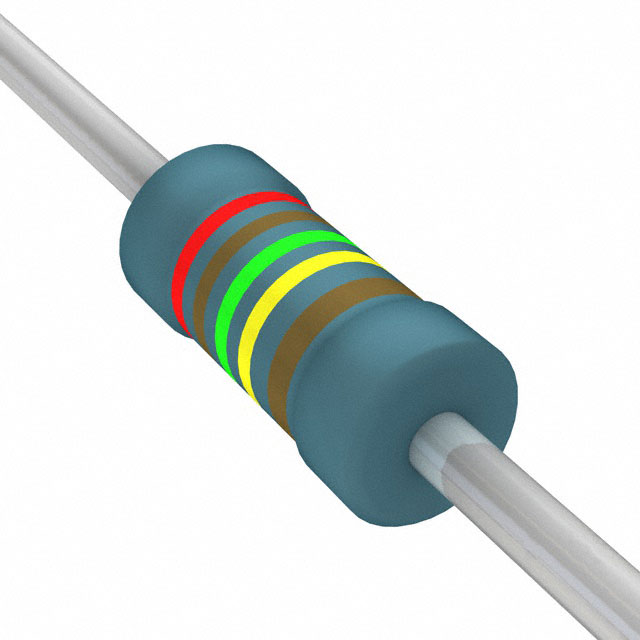

Vishay Beyschlag/Draloric/BC Components SFR16S series metal film resistor, part number SFR16S0002154FR500. This through-hole component offers a resistance of 2.15 MOhms with a tight ±1% tolerance. It is rated for 0.5W power dissipation and features an axial package with dimensions of 1.90mm x 3.50mm. The operating temperature range is from -55°C to 155°C, with a temperature coefficient of ±250ppm/°C. This component is suitable for applications in industrial, automotive, and consumer electronics sectors. Supplied on tape and reel.
Additional Information
Series: SFR16SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±1% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Axial |
| Temperature Coefficient | ±250ppm/°C |
| Size / Dimension | 0.075"" Dia x 0.138"" L (1.90mm x 3.50mm) |
| Composition | Metal Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 2.15 MOhms |
