NFR0100001001JR500
RES 1K OHM 1W 5% AXIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More

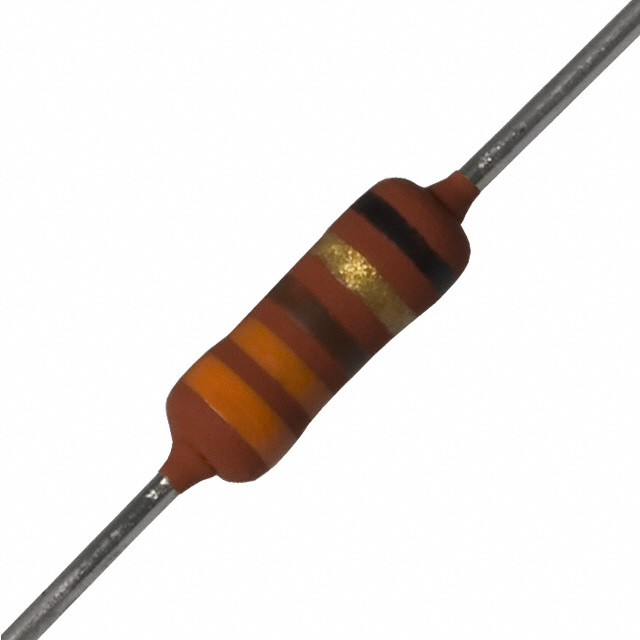

Vishay Beyschlag/Draloric/BC Components NFR01 series NFR0100001001JR500 is a 1 kOhm axial metal film resistor with a 5% tolerance. This 1W power rated component operates within a -55°C to 155°C temperature range and features a ±200ppm/°C temperature coefficient. Designed with flame-proof, fusible, and safety characteristics, it is suitable for applications demanding high reliability, including industrial control systems, power supplies, and automotive electronics. The resistor's axial package measures 2.50mm in diameter and 6.50mm in length. Supplied on tape and reel.
Additional Information
Series: NFR01RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Power (Watts) | 1W |
| Tolerance | ±5% |
| Features | Flame Proof, Fusible, Safety |
| Packaging | Tape & Reel (TR) |
| Package / Case | Axial |
| Temperature Coefficient | ±200ppm/°C |
| Size / Dimension | 0.098"" Dia x 0.256"" L (2.50mm x 6.50mm) |
| Composition | Metal Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | Axial |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 1 kOhms |
Request a Quote
