LSR3700Z02200KR500
RES 220 OHM 1/2W 10% AXIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More
The Vishay Beyschlag/Draloric/BC Components LSR37 series resistor, part number LSR3700Z02200KR500, is a 220 Ohm, 1/2W axial metal film resistor with a ±10% tolerance. Engineered for demanding applications, this component offers high voltage and pulse withstanding capabilities. It operates across a temperature range of -55°C to 155°C, with a temperature coefficient of 0/+600ppm/°C. The axial package, measuring 0.157" diameter by 0.354" length (4.00mm x 9.00mm), is suitable for through-hole mounting. This resistor finds utility in industries such as industrial, medical, and automotive, where robust performance under stress is critical. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: LSR37RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±10% |
| Features | High Voltage, Pulse Withstanding |
| Packaging | Tape & Reel (TR) |
| Package / Case | Axial |
| Temperature Coefficient | 0/ +600ppm/°C |
| Size / Dimension | 0.157"" Dia x 0.354"" L (4.00mm x 9.00mm) |
| Composition | Metal Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | Axial |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 220 Ohms |
Request a Quote
Clients Also Buy

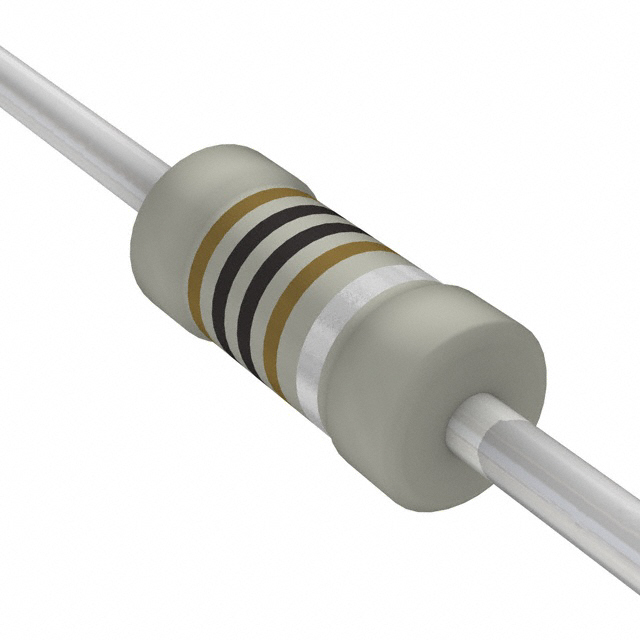

LSR3700001001KR500
RES 1K OHM 1/2W 10% AXIAL

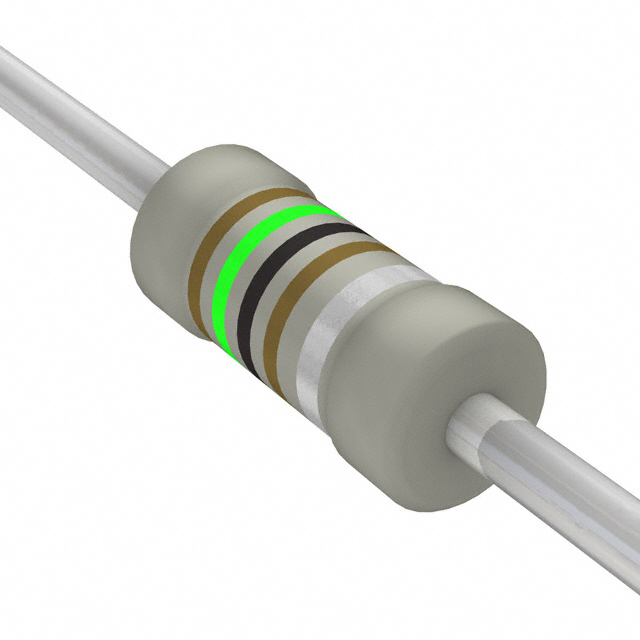

LSR3700001501KR500
