HVR6800002703JAC00
RES 270K OHM 1W 5% AXIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components HVR68 series, part number HVR6800002703JAC00, is a 270 kOhm ±5% axial metal film resistor with a power rating of 1W. This through-hole component features a flame retardant coating, high voltage capability, and pulse withstanding characteristics, making it suitable for safety applications. It operates within a temperature range of -55°C to 155°C with a temperature coefficient of ±200ppm/°C. The resistor's dimensions are 0.205" diameter by 0.657" length (5.20mm x 16.70mm). This component is commonly employed in power supplies, industrial equipment, and automotive electronics where reliability under demanding conditions is critical. It is supplied in Cut Tape (CT) packaging.
Additional Information
Series: HVR68RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Power (Watts) | 1W |
| Tolerance | ±5% |
| Features | Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety |
| Packaging | Cut Tape (CT) |
| Package / Case | Axial |
| Temperature Coefficient | ±200ppm/°C |
| Size / Dimension | 0.205"" Dia x 0.657"" L (5.20mm x 16.70mm) |
| Composition | Metal Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | Axial |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 270 kOhms |
Request a Quote
Clients Also Buy

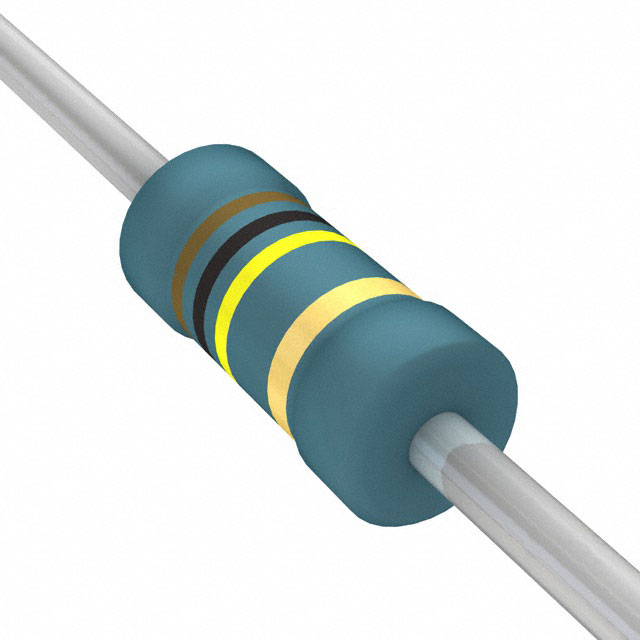

HVR6800001003JAC00
RES 100K OHM 1W 5% AXIAL

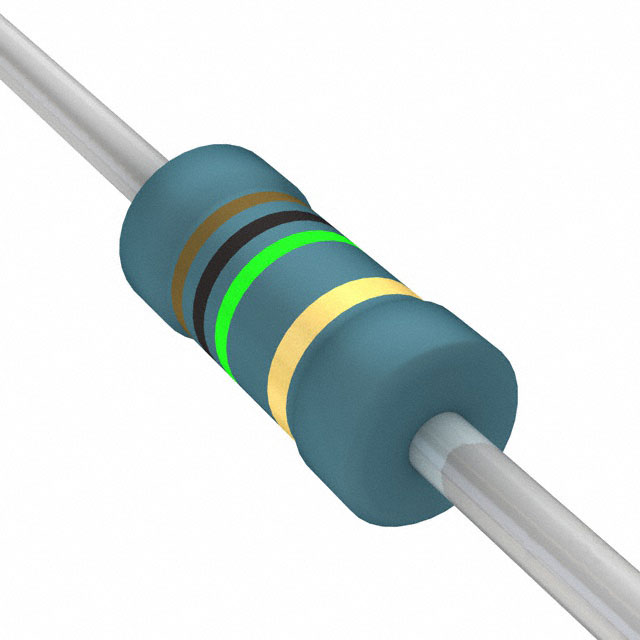

HVR6800001004JAC00
RES 1M OHM 1W 5% AXIAL

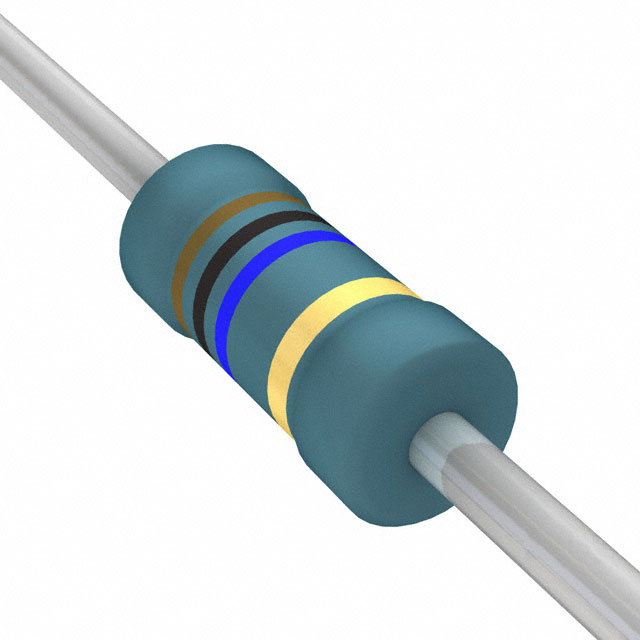

HVR6800001005JAC00
