G22041433308J2C000
G202 3R3 5% AC G53Manufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Through Hole Resistors
Quality Control: Learn More
3.3 Ohms ±5% 4W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Wirewound
Additional Information
Series: G200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 4W |
| Tolerance | ±5% |
| Features | Flame Proof, Pulse Withstanding, Safety |
| Packaging | Cut Tape (CT) |
| Package / Case | Axial |
| Temperature Coefficient | 100/ +180ppm/°C |
| Size / Dimension | 0.224"" Dia x 0.512"" L (5.70mm x 13.00mm) |
| Composition | Wirewound |
| Operating Temperature | -55°C ~ 350°C |
| Number of Terminations | 2 |
| Supplier Device Package | Axial |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 3.3 Ohms |
Request a Quote
Clients Also Buy

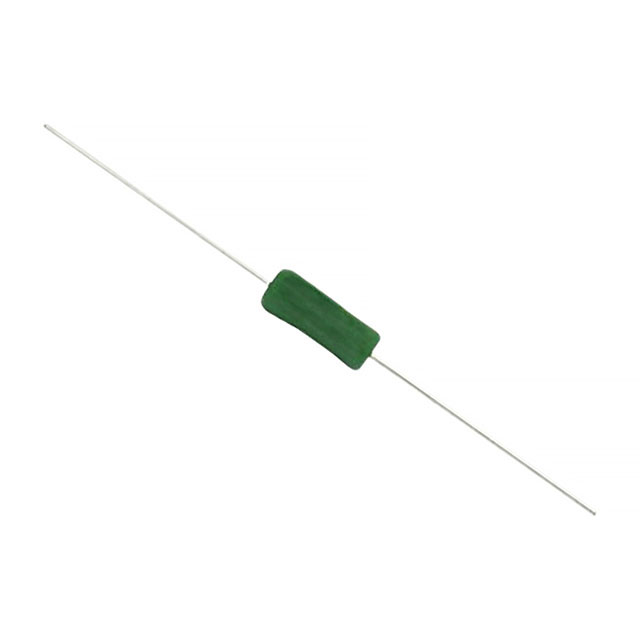

G24071931000J7B000
