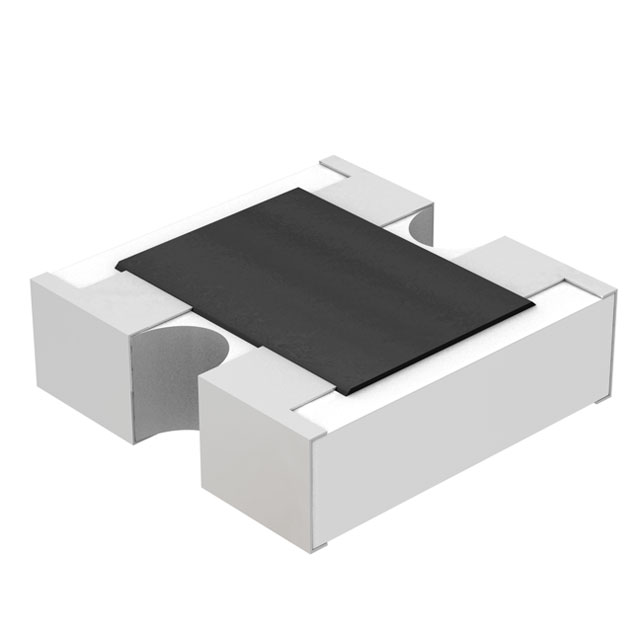

ACASN1000E2000P1AT
RES ARRAY 2 RES MULT OHM 0606Manufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Resistor Networks, Arrays
Quality Control: Learn More
100, 200 Ohm ±0.25% 125mW Power Per Element Isolated 2 Resistor Network/Array ±25ppm/°C 0606, Convex
Additional Information
Series: ACA - PrecisionRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 100, 200 |
| Tolerance | ±0.25% |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 125mW |
| Circuit Type | Isolated |
| Number of Pins | 4 |
| Package / Case | 0606, Convex |
| Temperature Coefficient | ±25ppm/°C |
| Size / Dimension | 0.063"" L x 0.059"" W (1.60mm x 1.50mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Voltage Divider (TCR Matched) |
| Supplier Device Package | 0606 |
| Height - Seated (Max) | 0.022"" (0.55mm) |
| Grade | Automotive |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±7.5ppm/°C |
| Number of Resistors | 2 |
| Qualification | AEC-Q200 |
Request a Quote
Clients Also Buy

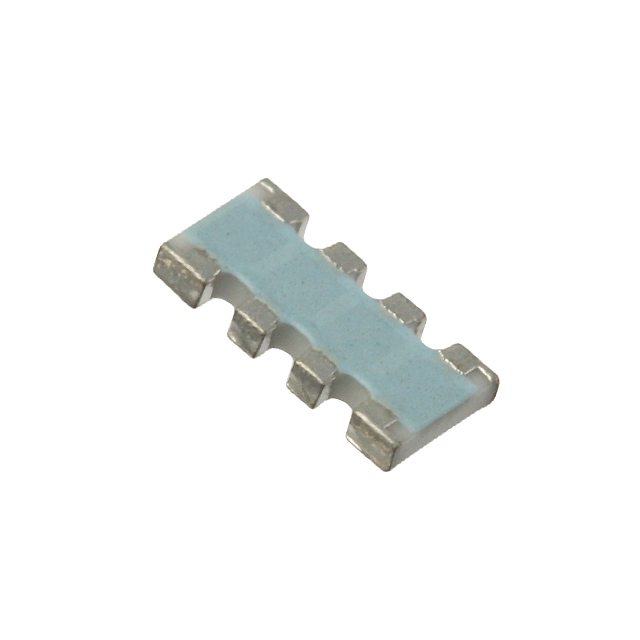

ACASA1001E3001P100
