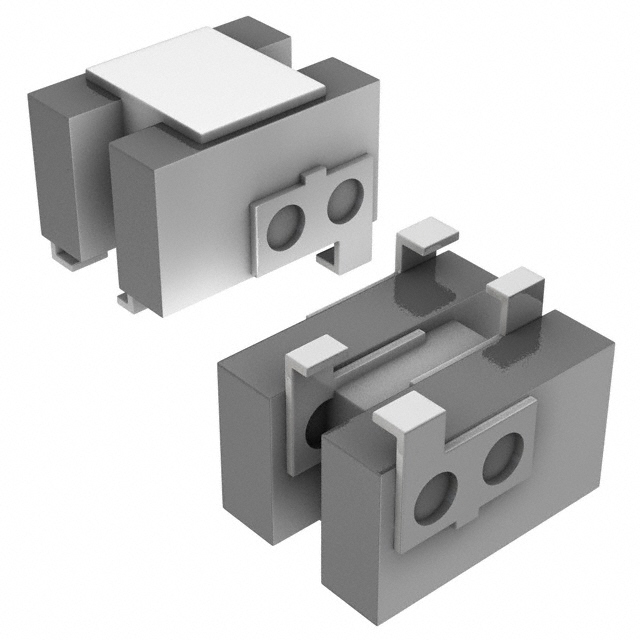

PTCTT95R100GTE
PTC RESET FUSE 240V 140MA 4SMDManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: PTC Resettable Fuses
Quality Control: Learn More
Ceramic PTC Resettable Fuse 240V 140 mA Ih Surface Mount 4-SMD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD |
| Size / Dimension | 0.354"" L x 0.283"" W (9.00mm x 7.20mm) |
| Mounting Type | Surface Mount |
| Type | Ceramic |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | - |
| Current - Hold (Ih) (Max) | 140 mA |
| Current - Trip (It) | 300 mA |
| Voltage - Max | 240V |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.272"" (6.90mm) |
| Current - Max | 4 A |
| Time to Trip | 4 s |
| Resistance - 25°C (Typ) | 10 Ohms |
Request a Quote
