PTCTL6NR160GTE
PTC RESET FUSE 245V 140MA RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: PTC Resettable Fuses
Quality Control: Learn More

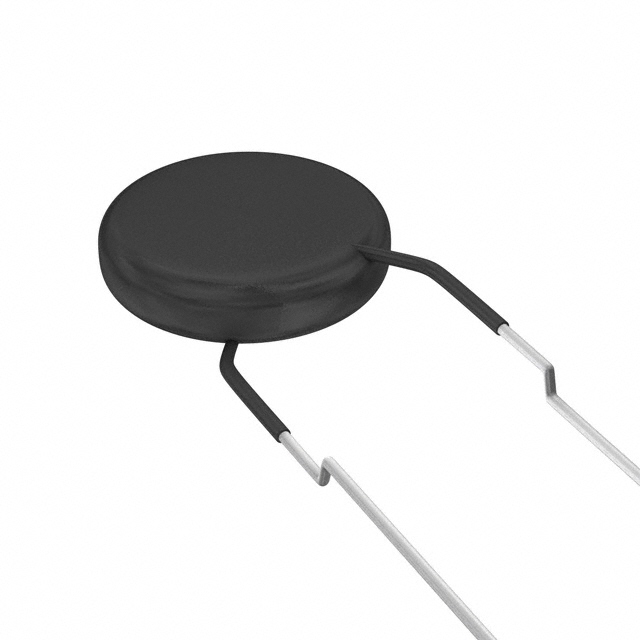

Ceramic PTC Resettable Fuse 245V 140 mA Ih Through Hole Radial, Disc
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.433"" Dia x 0.177"" T (11.00mm x 4.50mm) |
| Mounting Type | Through Hole |
| Type | Ceramic |
| Operating Temperature | 0°C ~ 70°C |
| Lead Spacing | 0.197"" (5.00mm) |
| Current - Hold (Ih) (Max) | 140 mA |
| Current - Trip (It) | 270 mA |
| Voltage - Max | 245V |
| Ratings | - |
| Height - Seated (Max) | 0.610"" (15.50mm) |
| Thickness (Max) | - |
| Current - Max | 1.6 A |
| Time to Trip | 8 s |
| Resistance - 25°C (Typ) | 16 Ohms |
