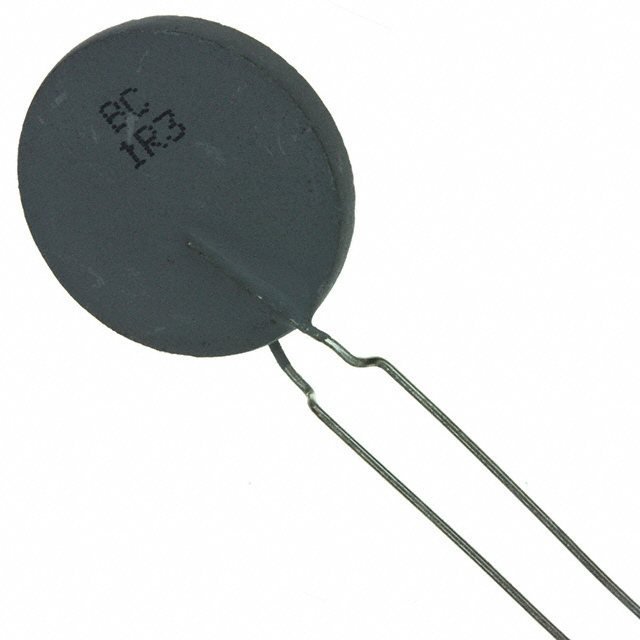

PTCCL21H102FBE
PTC RESET FUSE 145V 1A RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: PTC Resettable Fuses
Quality Control: Learn More
Ceramic PTC Resettable Fuse 145V 1 A Ih Through Hole Radial, Disc
Additional Information
Series: PTCCL - 145VRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.807"" Dia x 0.197"" T (20.50mm x 5.00mm) |
| Mounting Type | Through Hole |
| Type | Ceramic |
| Operating Temperature | 0°C ~ 70°C |
| Lead Spacing | 0.197"" (5.00mm) |
| Current - Hold (Ih) (Max) | 1 A |
| Current - Trip (It) | 1.5 A |
| Voltage - Max | 145V |
| Ratings | - |
| Height - Seated (Max) | 1.004"" (25.50mm) |
| Thickness (Max) | - |
| Current - Max | 13 A |
| Resistance - 25°C (Typ) | 1.3 Ohms |
