PTCCL13H451FBE
PTC RESET FUSE 145V 450MA RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: PTC Resettable Fuses
Quality Control: Learn More

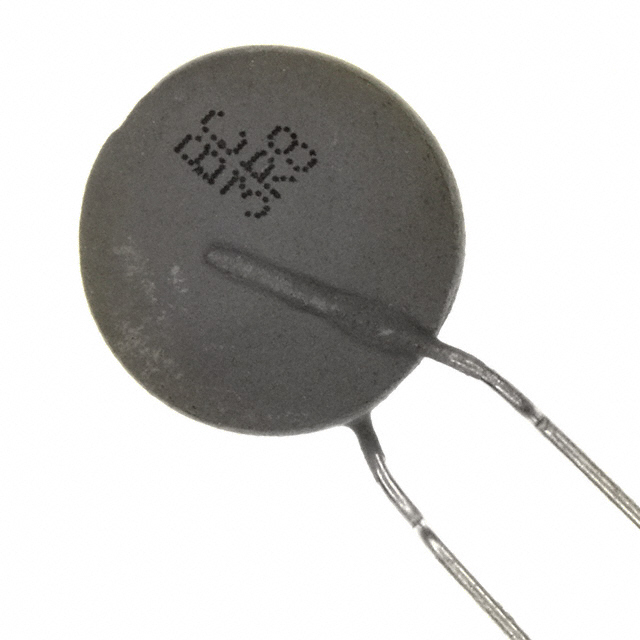

Ceramic PTC Resettable Fuse 145V 450 mA Ih Through Hole Radial, Disc
Additional Information
Series: PTCCL - 145VRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.492"" Dia x 0.197"" T (12.50mm x 5.00mm) |
| Mounting Type | Through Hole |
| Type | Ceramic |
| Operating Temperature | 0°C ~ 70°C |
| Lead Spacing | 0.197"" (5.00mm) |
| Current - Hold (Ih) (Max) | 450 mA |
| Current - Trip (It) | 675 mA |
| Voltage - Max | 145V |
| Ratings | - |
| Height - Seated (Max) | 0.689"" (17.50mm) |
| Thickness (Max) | - |
| Current - Max | 5 A |
| Resistance - 25°C (Typ) | 3.8 Ohms |
