PTCCL05H950HBE
PTC RESET FUSE 265V 95MA RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: PTC Resettable Fuses
Quality Control: Learn More

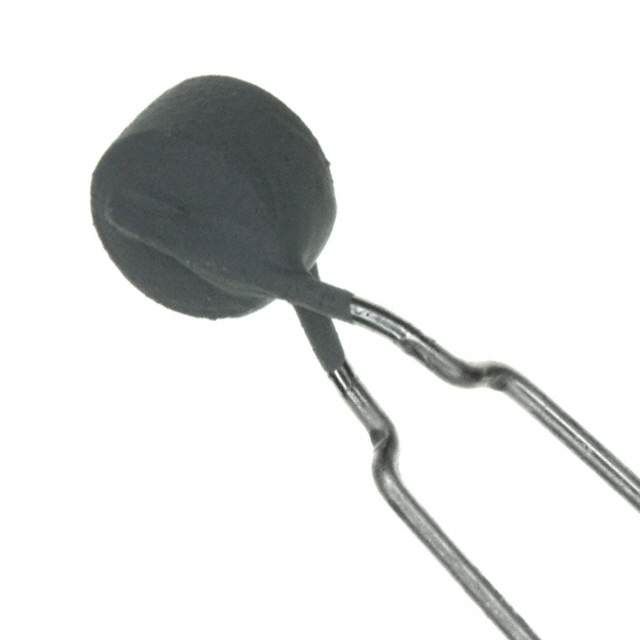

Ceramic PTC Resettable Fuse 265V 95 mA Ih Through Hole Radial, Disc
Additional Information
Series: PTCCL - 265VRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.197"" Dia x 0.197"" T (5.00mm x 5.00mm) |
| Mounting Type | Through Hole |
| Type | Ceramic |
| Operating Temperature | 0°C ~ 70°C |
| Lead Spacing | 0.197"" (5.00mm) |
| Current - Hold (Ih) (Max) | 95 mA |
| Current - Trip (It) | 143 mA |
| Voltage - Max | 265V |
| Ratings | - |
| Height - Seated (Max) | 0.394"" (10.00mm) |
| Thickness (Max) | - |
| Current - Max | 600 mA |
| Resistance - 25°C (Typ) | 56 Ohms |
