2322 662 93114
PTC RESET FUSE 600V 175MA RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: PTC Resettable Fuses
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components 2322-662-93114 is a radial disc, ceramic PTC resettable fuse designed for overcurrent protection. This through-hole component offers a maximum operating voltage of 600V and a typical hold current (Ih) of 175 mA. It features a trip current (It) of 400 mA and a resistance of 10 Ohms at 25°C. The fuse has a disc diameter of 0.512 inches (13.00mm) and a thickness of 0.217 inches (5.50mm), with a seated height of 0.709 inches (18.00mm) and a lead spacing of 0.197 inches (5.00mm). The time to trip is rated at 7 seconds. This component is suitable for applications in consumer electronics and industrial equipment requiring reliable overcurrent protection.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.512"" Dia x 0.217"" T (13.00mm x 5.50mm) |
| Mounting Type | Through Hole |
| Type | Ceramic |
| Operating Temperature | - |
| Lead Spacing | 0.197"" (5.00mm) |
| Current - Hold (Ih) (Max) | 175 mA |
| Current - Trip (It) | 400 mA |
| Voltage - Max | 600V |
| Ratings | - |
| Height - Seated (Max) | 0.709"" (18.00mm) |
| Thickness (Max) | - |
| Time to Trip | 7 s |
| Resistance - 25°C (Typ) | 10 Ohms |
Request a Quote
Clients Also Buy
PTCTZ3MR150KTE
PTC RESET FUSE 300V 150MA 2SMD
PTCTZ3NR150KTE
PTC RESET FUSE 300V 150MA 2SMD

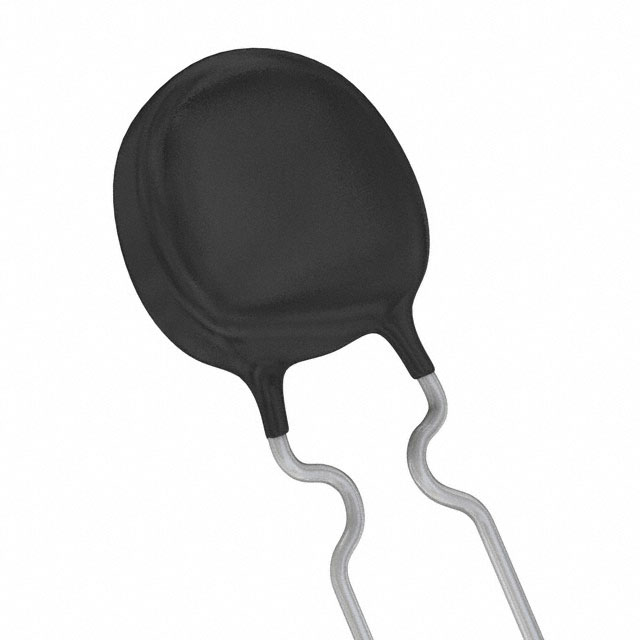

PTCCL05H110HTE
