NTCS0805XX333JHT
THERMISTOR NTC 33KOHM 3920K 0805Manufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More

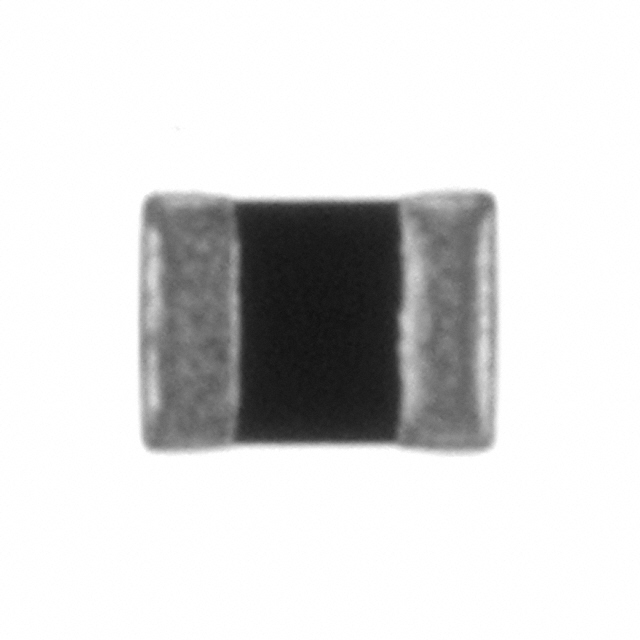

Vishay Beyschlag/Draloric/BC Components NTC Thermistor, part number NTCS0805XX333JHT, from the 2322 series. This surface mount device features a resistance of 33 kOhms at 25°C with a resistance tolerance of ±5%. The thermistor has a B-value of 3920K (B25/85) and a B-value tolerance of ±1%. It operates within a temperature range of -40°C to 150°C and has a maximum power rating of 210 mW. The component is housed in an 0805 (2012 Metric) package and is supplied on tape and reel. This NTC thermistor is suitable for applications in industrial, automotive, and consumer electronics.
Additional Information
Series: 2322RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3920K |
| B25/100 | - |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 33k |
| Resistance Tolerance | ±5% |
| B25/75 | - |
| Length - Lead Wire | - |
| Power - Max | 210 mW |
