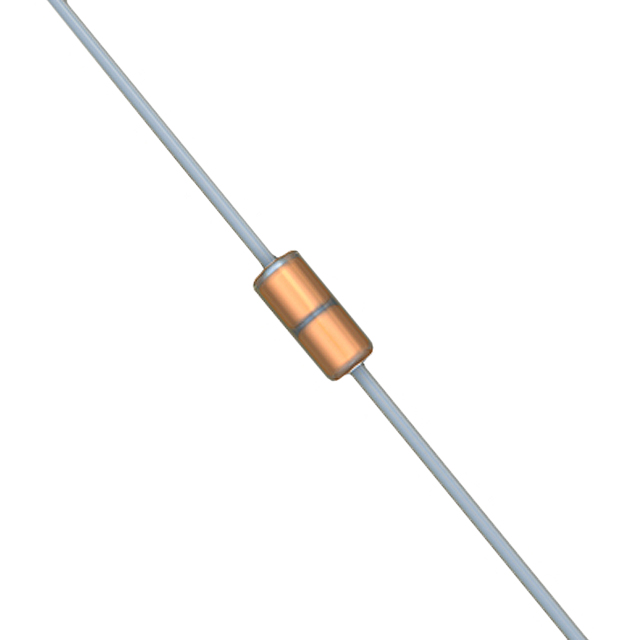

NTCLG100XX104JB
THERM NTC 100KOHM 3997K DO35Manufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components 2322 series NTC thermistor, part number NTCLG100XX104JB. This axial-leaded component features a resistance of 100 kOhms at 25°C with a resistance tolerance of ±5%. The thermistor is characterized by a B value of 3997K (B25/85) and a B value tolerance of ±1.3%. Designed for through-hole mounting, the DO-204AH/DO-35 package has a maximum power dissipation of 100 mW and operates over a temperature range of -40°C to 200°C. Lead wires extend 1.00 inches (25.40mm). This component is utilized in applications requiring precise temperature sensing and compensation, commonly found in consumer electronics, automotive systems, and industrial controls.
Additional Information
Series: 2322RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 200°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3997K |
| B25/100 | - |
| B Value Tolerance | ±1.3% |
| Resistance in Ohms @ 25°C | 100k |
| Resistance Tolerance | ±5% |
| B25/75 | - |
| Length - Lead Wire | 1.00"" (25.40mm) |
| Power - Max | 100 mW |
