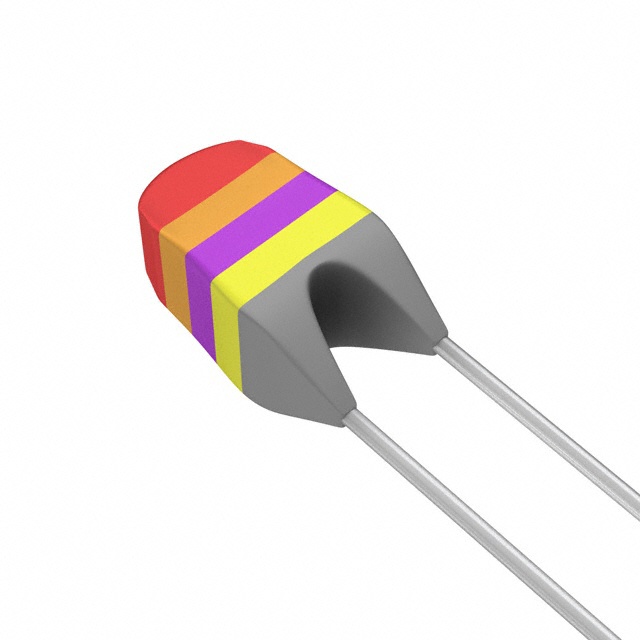

NTCLE203XX473GB0
THERMISTOR NTC 47KOHM 4090K BEADManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components NTCLE203XX473GB0 is a NTC thermistor with a resistance of 47k Ohms at 25°C and a B value of 4090K (B25/85). This component features a ±2% resistance tolerance and a ±1.5% B value tolerance. Designed for through-hole mounting, it is packaged as a bead with 1.58" (40.00mm) lead wires. The maximum power dissipation for this device is 100 mW, with an operating temperature range of -40°C to 150°C. This NTC thermistor is commonly employed in temperature sensing and compensation circuits across various industries, including automotive, industrial control, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 4090K |
| B25/100 | - |
| B Value Tolerance | ±1.5% |
| Resistance in Ohms @ 25°C | 47k |
| Resistance Tolerance | ±2% |
| B25/75 | - |
| Length - Lead Wire | 1.58"" (40.00mm) |
| Power - Max | 100 mW |
