NTCLE203XX104FB0
THERM NTC 100KOHM 4190K BEADManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More

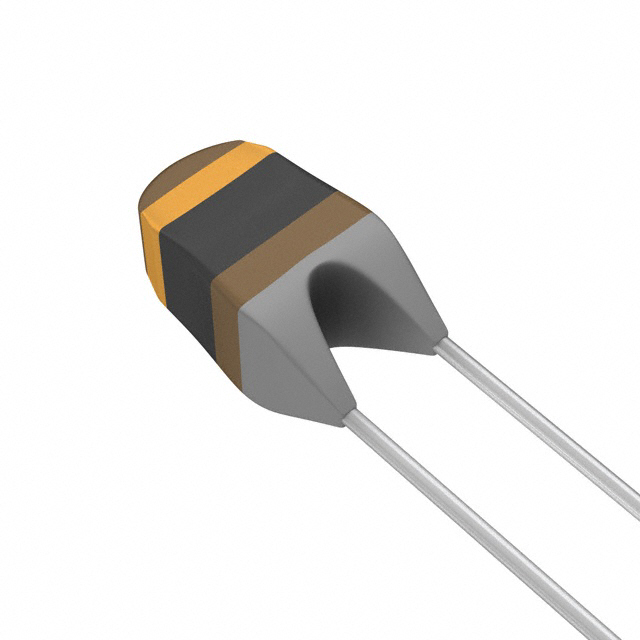

Vishay Beyschlag/Draloric/BC Components NTC thermistor, part number NTCLE203XX104FB0, from the 2322 series. This bead-style thermistor offers a nominal resistance of 100 kOhms at 25°C with a tight resistance tolerance of ±1%. It features a B-value of 4190K (B25/85) with a B-value tolerance of ±1.5%. Designed for through-hole mounting, the component includes lead wires measuring 1.58 inches (40.00mm). With a maximum power rating of 100 mW and an operating temperature range of -40°C to 150°C, this thermistor is suitable for temperature sensing and compensation applications in automotive, industrial, and consumer electronics sectors. Supplied in bulk packaging.
Additional Information
Series: 2322RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 4190K |
| B25/100 | - |
| B Value Tolerance | ±1.5% |
| Resistance in Ohms @ 25°C | 100k |
| Resistance Tolerance | ±1% |
| B25/75 | - |
| Length - Lead Wire | 1.58"" (40.00mm) |
| Power - Max | 100 mW |
