NTCLE100E3221GB0
THERMISTOR NTC 220OHM 3560K BEADManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More

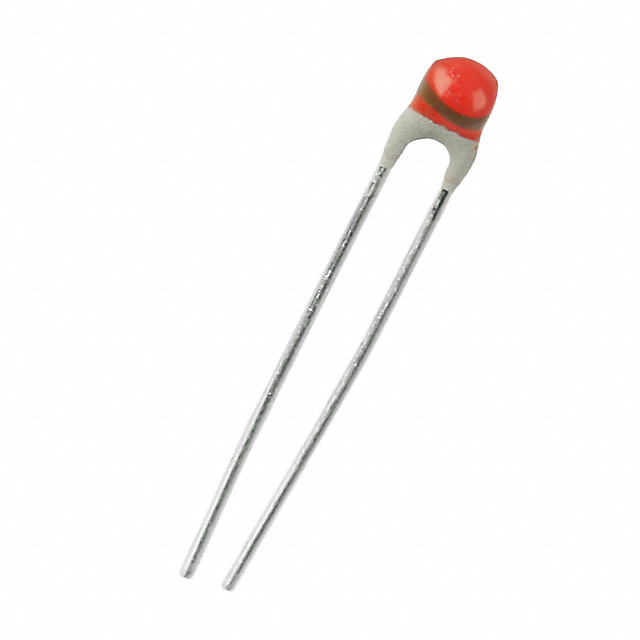

Vishay Beyschlag/Draloric/BC Components NTCLE100E3221GB0 is a 220 Ohm NTC thermistor with a B25/85 value of 3560K. This bead-type device features a resistance tolerance of ±2% and a B value tolerance of ±1.5%. Designed for through-hole mounting, it offers a lead wire length of 0.55 inches (14.00mm). The thermistor operates across a temperature range of -40°C to 125°C and has a maximum power rating of 500 mW. This component is suitable for applications in automotive, industrial, and consumer electronics, where precise temperature sensing and compensation are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3560K |
| B25/100 | - |
| B Value Tolerance | ±1.5% |
| Resistance in Ohms @ 25°C | 220 |
| Resistance Tolerance | ±2% |
| B25/75 | - |
| Length - Lead Wire | 0.55"" (14.00mm) |
| Power - Max | 500 mW |
