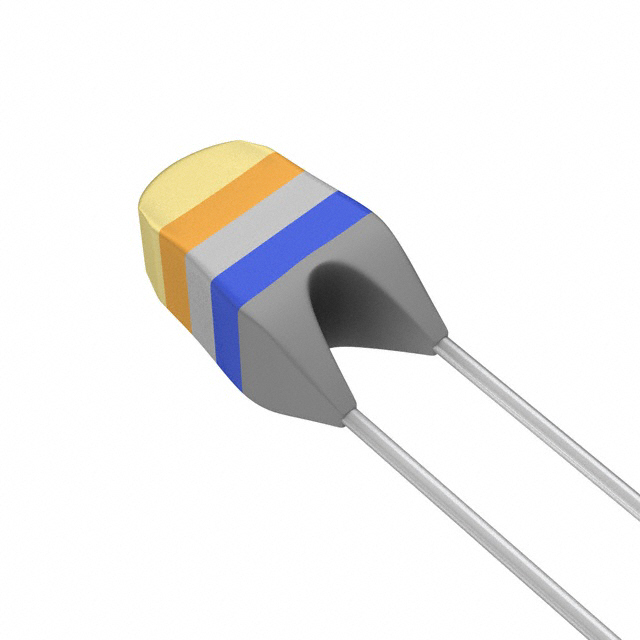

NTCLE100CL683JB0
THERMISTOR NTC 68KOHM 4190K BEADManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components NTC Thermistor, part number NTCLE100CL683JB0 from the 2322 series, offers a nominal resistance of 68k Ohms @ 25°C with a ±5% resistance tolerance. This bead-style thermistor features a B25/85 value of 4190K and a B value tolerance of ±1.5%. Designed for through-hole mounting, it operates within a temperature range of -40°C to 150°C and has a maximum power dissipation of 500 mW. This component is commonly utilized in automotive, industrial, and consumer electronics applications requiring precise temperature sensing and compensation. The NTCLE100CL683JB0 is supplied in bulk packaging.
Additional Information
Series: 2322RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 4190K |
| B25/100 | - |
| B Value Tolerance | ±1.5% |
| Resistance in Ohms @ 25°C | 68k |
| Resistance Tolerance | ±5% |
| B25/75 | - |
| Length - Lead Wire | - |
| Power - Max | 500 mW |
