NTCLE100CL474JB0
THERM NTC 470KOHM 4570K BEADManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More

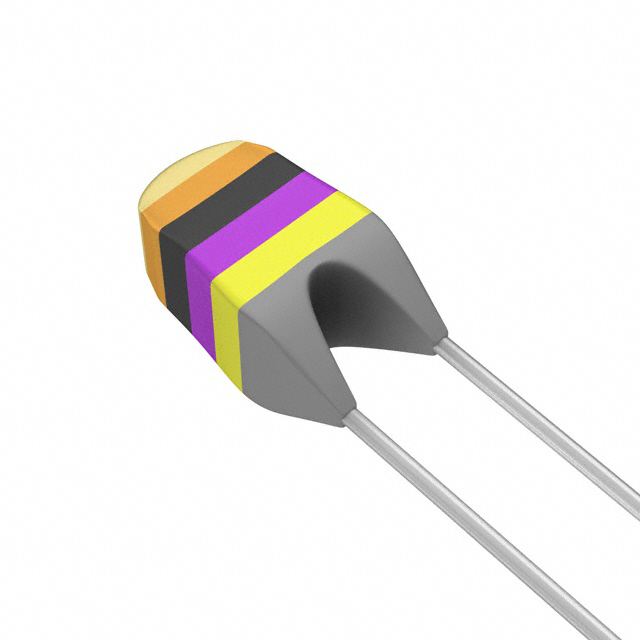

Vishay Beyschlag/Draloric/BC Components NTC Thermistor, part number NTCLE100CL474JB0 from the 2322 series, offers a nominal resistance of 470 kOhms at 25°C with a resistance tolerance of ±5%. This bead-type thermistor features a B25/85 value of 4570K, providing precise temperature sensing capabilities within an operating temperature range of -40°C to 150°C. Designed for through-hole mounting, the NTCLE100CL474JB0 is suitable for applications in industrial control, automotive systems, and power management where accurate temperature monitoring is critical. The component is supplied in Bulk packaging.
Additional Information
Series: 2322RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 4570K |
| B25/100 | - |
| B Value Tolerance | ±1.5% |
| Resistance in Ohms @ 25°C | 470k |
| Resistance Tolerance | ±5% |
| B25/75 | - |
| Length - Lead Wire | - |
| Power - Max | 500 mW |
