2381 615 53332
THERMISTOR NTC 3.3KOHM 0805Manufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More

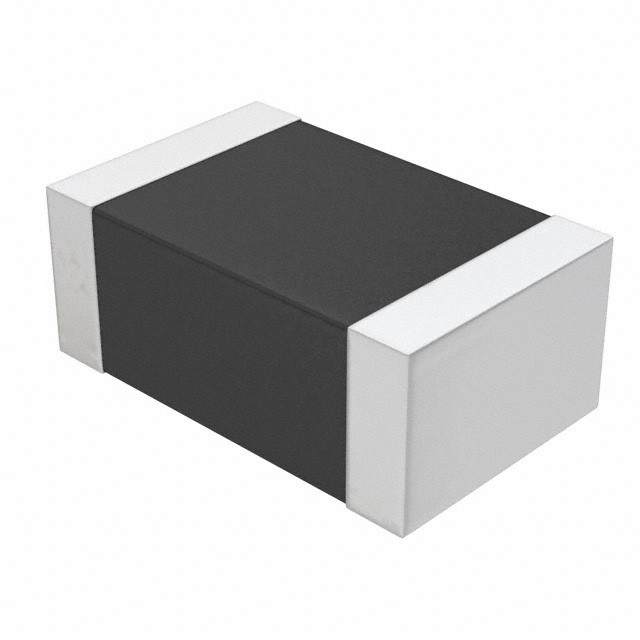

Vishay Beyschlag/Draloric/BC Components 2381-615-53332 is a surface-mount NTC thermistor with a resistance of 3.3k Ohms at 25°C and a tolerance of ±5%. The component features a B value tolerance of ±1% and is housed in an 0805 (2012 Metric) package. It offers a maximum power rating of 210 mW and operates across a temperature range of -40°C to 150°C. This Vishay Beyschlag/Draloric/BC Components NTC thermistor is AEC-Q200 qualified and specified for automotive applications. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | - |
| B25/100 | - |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 3.3k |
| Resistance Tolerance | ±5% |
| B25/75 | - |
| Length - Lead Wire | - |
| Grade | Automotive |
| Power - Max | 210 mW |
| Qualification | AEC-Q200 |
