2322 615 33103
THERMISTOR NTC 10KOHM 3610K 0603Manufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More

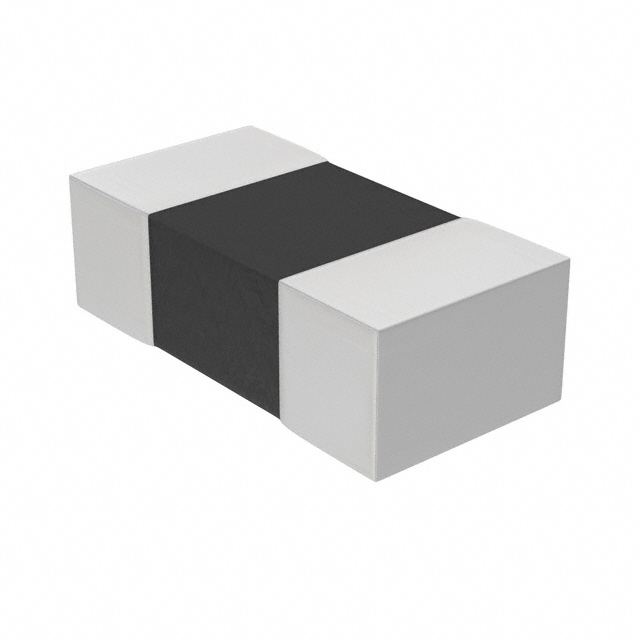

Vishay Beyschlag/Draloric/BC Components 2322 series NTC thermistor, part number 2322-615-33103. This surface mount component features a resistance of 10kOhms at 25°C with a ±3% resistance tolerance. It is specified with a B25/85 value of 3610K and a B value tolerance of ±1%. The thermistor is housed in an 0603 (1608 Metric) package and is supplied on tape and reel. With a maximum power rating of 125 mW, it operates across a temperature range of -40°C to 150°C. This component is suitable for applications in consumer electronics, industrial control, and automotive systems.
Additional Information
Series: 2322RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3610K |
| B25/100 | - |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±3% |
| B25/75 | - |
| Length - Lead Wire | - |
| Power - Max | 125 mW |
