04M3002SFC3
NTC THERMISTORSManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: NTC Thermistors
Quality Control: Learn More

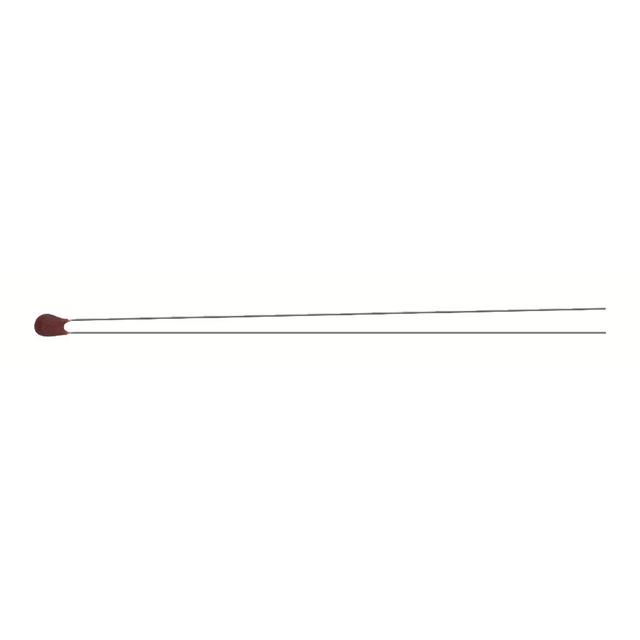

Vishay Beyschlag/Draloric/BC Components NTC Thermistor, part number 04M3002SFC3, is a 30k ohm bead-type thermistor with a B25/85 value of 4262K and a B25/75 value of 4247K. This component operates within an extended temperature range of -40°C to 125°C and has a maximum power dissipation of 75 mW. Featuring lead wires with a length of 1.42 inches (36.00mm), it is designed for through-hole mounting. The 04M3002SFC3 is commonly utilized in power supply circuits, temperature compensation applications, and general sensing in the industrial and automotive sectors. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 4262K |
| B25/100 | - |
| B Value Tolerance | - |
| Resistance in Ohms @ 25°C | 30k |
| Resistance Tolerance | - |
| B25/75 | 4247K |
| Length - Lead Wire | 1.42"" (36.00mm) |
| Power - Max | 75 mW |
Request a Quote
Clients Also Buy
NTCLE100E3104GT2
THERM NTC 100KOHM 4190K BEAD

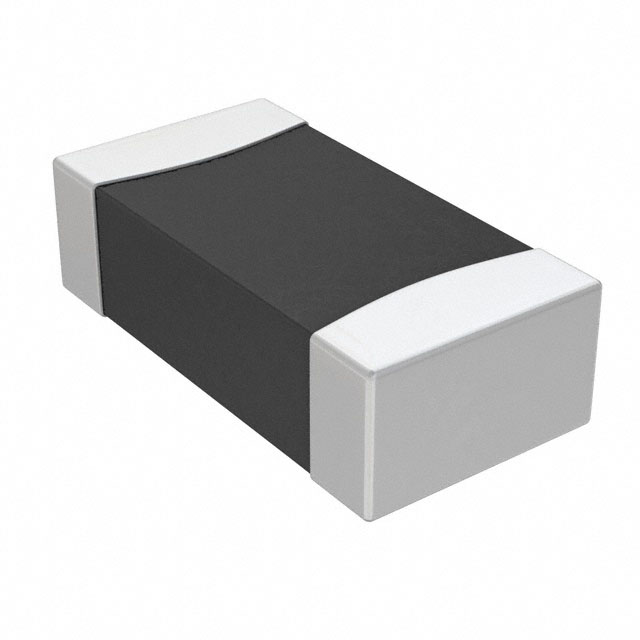

NTCS0805E3104JMT
