MKP1849750050K
MKP1849 500UF 5% 500VManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Film Capacitors
Quality Control: Learn More

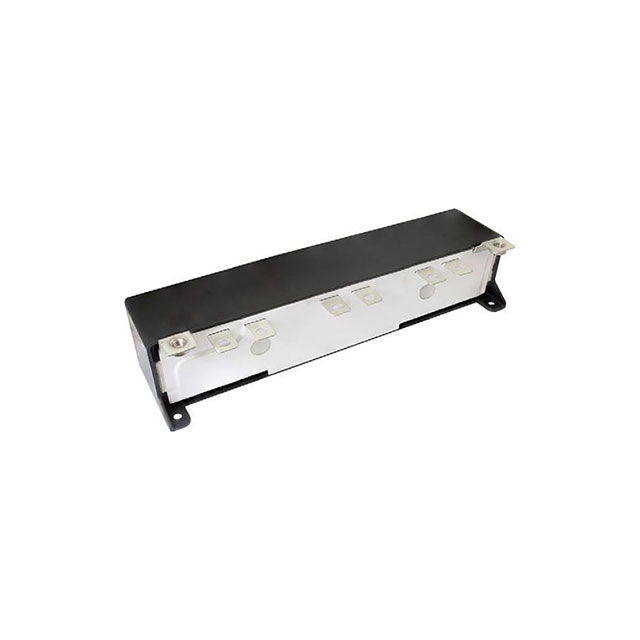

500 µF Film Capacitor 500V Polypropylene (PP), Metallized Rectangular Box
Additional Information
Series: MKP1849 DC-LinkRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Features | - |
| Packaging | Tray |
| Package / Case | Rectangular Box |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 105°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | - |
| Termination | Quick Connect, Disconnect |
| Ratings | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 500V |
| Height - Seated (Max) | 2.008"" (51.00mm) |
| Capacitance | 500 µF |
| Size / Dimension | 9.331"" L x 1.969"" W (237.00mm x 50.00mm) |
