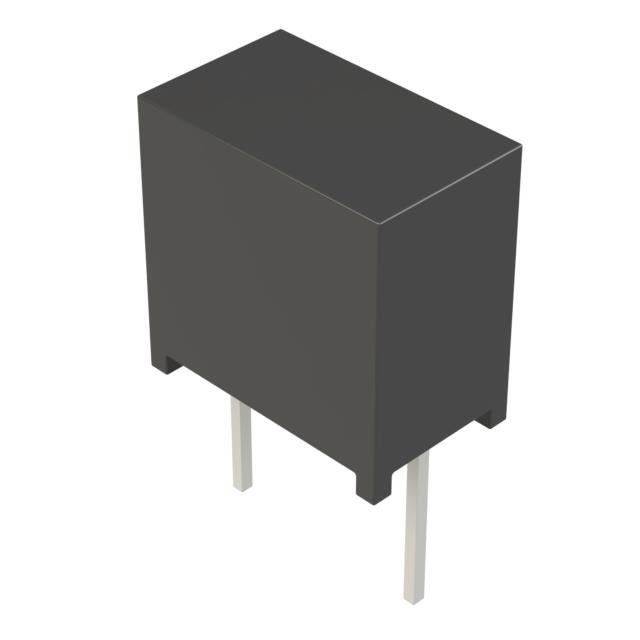

MKP1847H55035JP4
CAP FILM 5UF 5% 700VDC RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Film Capacitors
Quality Control: Learn More
5 µF Film Capacitor 350V 700V Polypropylene (PP), Metallized Radial - 4 Leads
Additional Information
Series: MKP 1847HRoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 4 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | EMI, RFI Suppression |
| Lead Spacing | 1.476"" (37.50mm) |
| Termination | PC Pins |
| Ratings | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 350V |
| Voltage Rating - DC | 700V |
| Height - Seated (Max) | 1.535"" (39.00mm) |
| Capacitance | 5 µF |
| ESR (Equivalent Series Resistance) | 7.5 MOhms |
| Size / Dimension | 1.654"" L x 0.846"" W (42.00mm x 21.50mm) |
