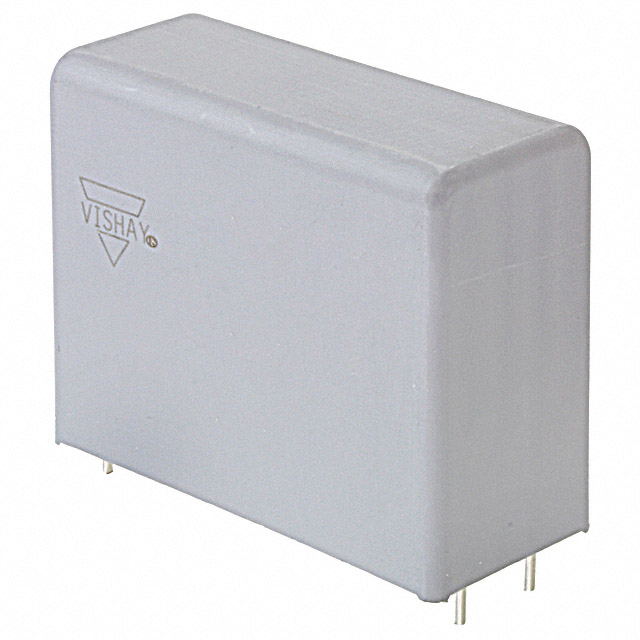

MKP1847610444Y5
CAP FILM 10UF 5% 440VAC RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Film Capacitors
Quality Control: Learn More
10 µF Film Capacitor 440V Polypropylene (PP), Metallized Radial - 4 Leads
Additional Information
Series: MKP1847RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Features | Long Life |
| Packaging | Bulk |
| Package / Case | Radial - 4 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT |
| Lead Spacing | 2.067"" (52.50mm) |
| Termination | PC Pins |
| Ratings | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 440V |
| Voltage Rating - DC | - |
| Height - Seated (Max) | 1.969"" (50.00mm) |
| Capacitance | 10 µF |
| Size / Dimension | 2.264"" L x 1.378"" W (57.50mm x 35.00mm) |
