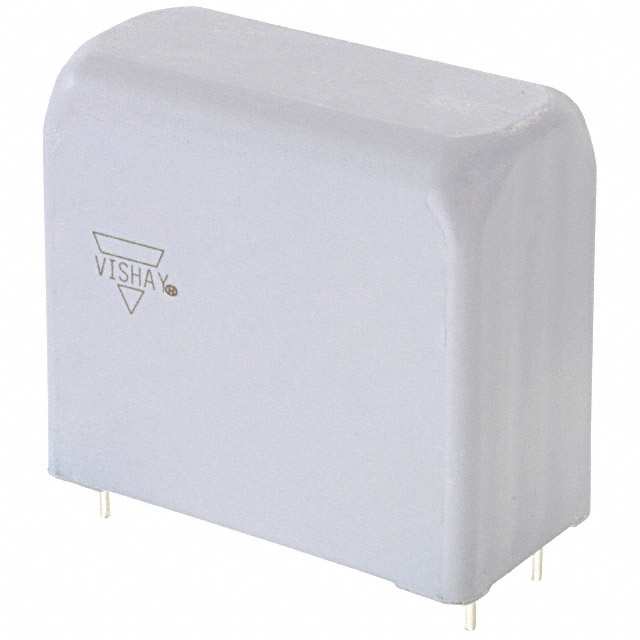

MKP1847580354P4
CAP FILM 8UF 5% 700VDC RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Film Capacitors
Quality Control: Learn More
8 µF Film Capacitor 350V 700V Polypropylene (PP), Metallized Radial - 4 Leads
Additional Information
Series: MKP1847RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Features | Long Life |
| Packaging | Bulk |
| Package / Case | Radial - 4 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT |
| Lead Spacing | 1.476"" (37.50mm) |
| Termination | PC Pins |
| Ratings | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 350V |
| Voltage Rating - DC | 700V |
| Height - Seated (Max) | 1.516"" (38.50mm) |
| Capacitance | 8 µF |
| Size / Dimension | 1.693"" L x 0.846"" W (43.00mm x 21.50mm) |
