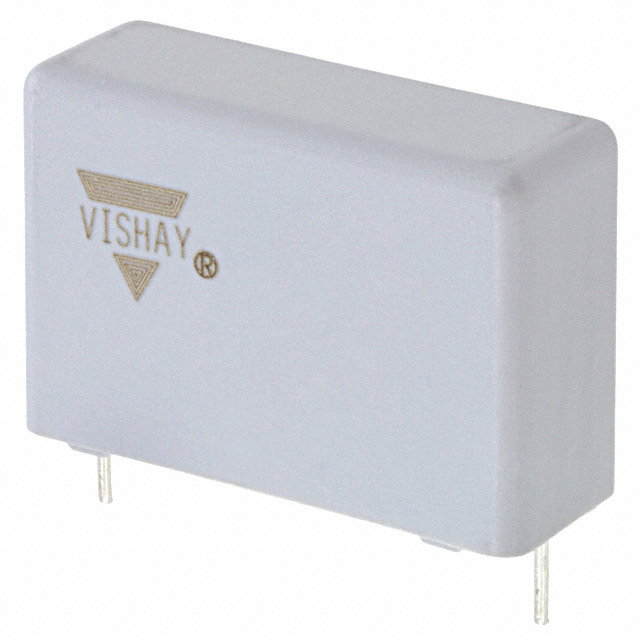

MKP1847510354K2
CAP FILM 1UF 5% 700VDC RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Film Capacitors
Quality Control: Learn More
1 µF Film Capacitor 350V 700V Polypropylene (PP), Metallized Radial
Additional Information
Series: MKP1847RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Features | Long Life |
| Packaging | Bulk |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT |
| Lead Spacing | 1.083"" (27.50mm) |
| Termination | PC Pins |
| Ratings | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 350V |
| Voltage Rating - DC | 700V |
| Height - Seated (Max) | 0.827"" (21.00mm) |
| Capacitance | 1 µF |
| Size / Dimension | 1.260"" L x 0.433"" W (32.00mm x 11.00mm) |
Request a Quote
