BFC237892103

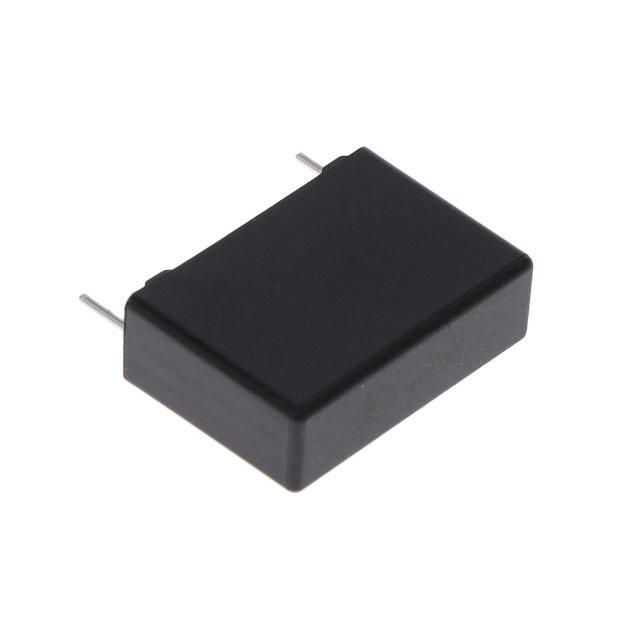

CAP FILM 10000PF 5% 2KVDC RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Film Capacitors
Quality Control: Learn More
10000 pF Film Capacitor 600V 2000V (2kV) Polypropylene (PP), Metallized Radial
Additional Information
Series: MKP/MKP378RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Features | Long Life |
| Packaging | Bulk |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 85°C |
| Applications | High Pulse, DV/DT |
| Lead Spacing | 0.886"" (22.50mm) |
| Termination | PC Pins |
| Ratings | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 2000V (2kV) |
| Height - Seated (Max) | 0.728"" (18.50mm) |
| Capacitance | 10000 pF |
| Size / Dimension | 1.024"" L x 0.335"" W (26.00mm x 8.50mm) |
Request a Quote
