BFC233667103
CAP FILM 10000PF 10% 1KVDC RADManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Film Capacitors
Quality Control: Learn More

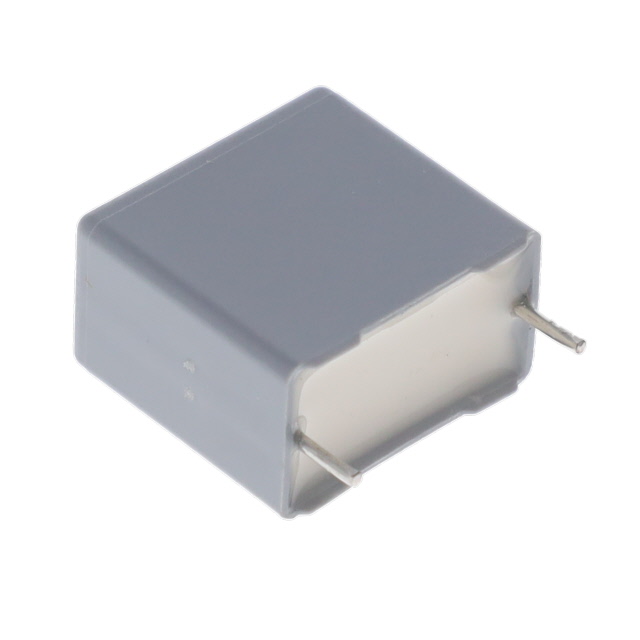

10000 pF Film Capacitor 300V 1000V (1kV) Polypropylene (PP), Metallized Radial
Additional Information
Series: MKP336 6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | EMI, RFI Suppression |
| Lead Spacing | 0.394"" (10.00mm) |
| Termination | PC Pins |
| Ratings | Y2 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 1000V (1kV) |
| Height - Seated (Max) | 0.433"" (11.00mm) |
| Capacitance | 10000 pF |
| Size / Dimension | 0.492"" L x 0.197"" W (12.50mm x 5.00mm) |
Request a Quote
