2312 275 15605
RES SMD 5.6M OHM 1% 1/10W 0402Manufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components MCS - Professional Series 0402 (1005 Metric) thin film chip resistor, part number 2312-275-15605. This surface mount component offers a resistance of 5.6 MOhms with a tight tolerance of ±1%. It is rated for 0.1W (1/10W) power dissipation and operates across a temperature range of -55°C to 155°C. The resistor features a temperature coefficient of ±50ppm/°C. Its compact dimensions are 0.039" L x 0.020" W (1.00mm x 0.50mm), with a maximum seated height of 0.015" (0.37mm). Supplied in Tape & Reel packaging, this component is suitable for applications in automotive, industrial, and consumer electronics.
Additional Information
Series: MCS - ProfessionalRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.1W, 1/10W |
| Tolerance | ±1% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Temperature Coefficient | ±50ppm/°C |
| Size / Dimension | 0.039"" L x 0.020"" W (1.00mm x 0.50mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.015"" (0.37mm) |
| Failure Rate | - |
| Resistance | 5.6 mOhms |
Request a Quote
Clients Also Buy
MCS04020C1104FE000
RES 1.1M OHM 1% 1/16W 0402
MCS04020C1204FE000
RES 1.2M OHM 1% 1/16W 0402

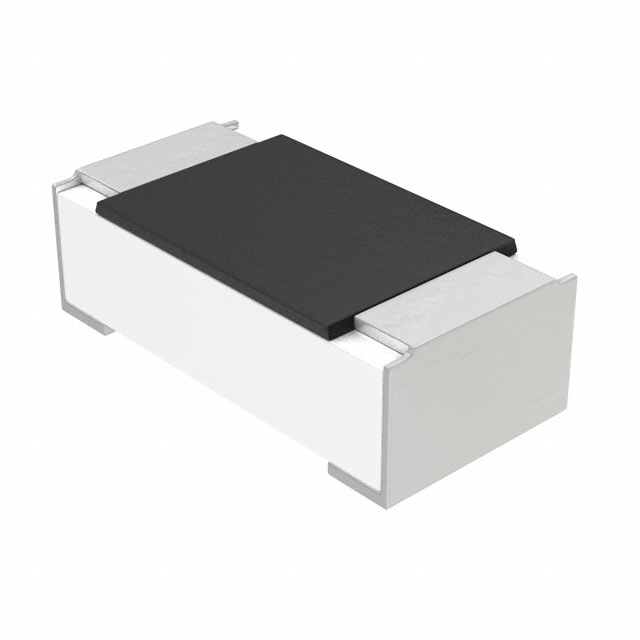

MCS04020C1214FE000
