MAL229959122E3
CAP ALUM 500V POLARManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
1.2 mF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 100mOhm @ 100Hz 5000 Hrs @ 105°C
Additional Information
Series: 299 PHL-4TSIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Box |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Size / Dimension | 1.575"" Dia (40.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.886"" (22.50mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 100mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 4.016"" (102.00mm) |
| Capacitance | 1.2 mF |
| Voltage - Rated | 500 V |
| Impedance | 70 mOhms |
| Ripple Current @ Low Frequency | 5.2 A @ 100 Hz |
| Ripple Current @ High Frequency | 7.8 A @ 10 kHz |
Request a Quote
Clients Also Buy

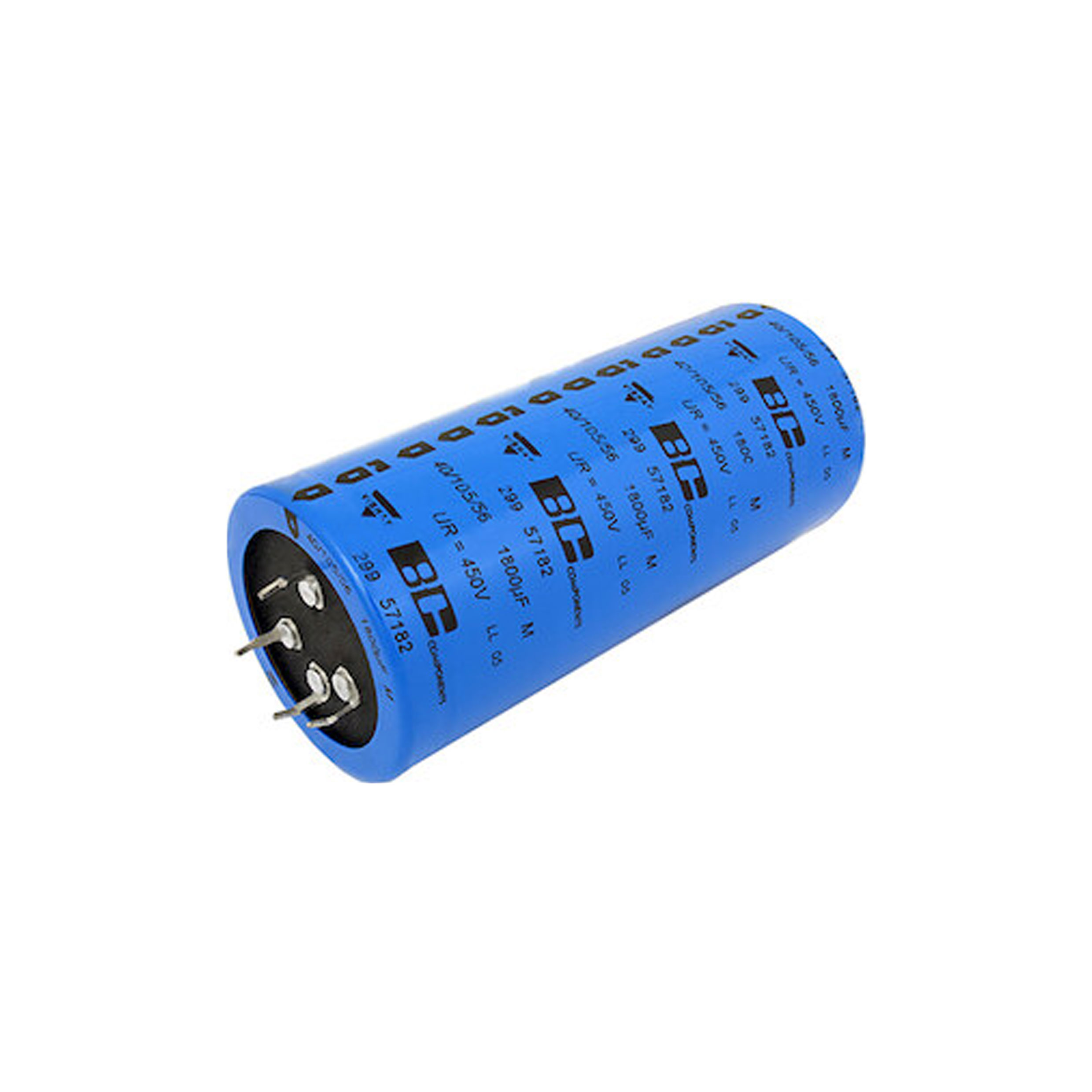

MAL229950102E3
