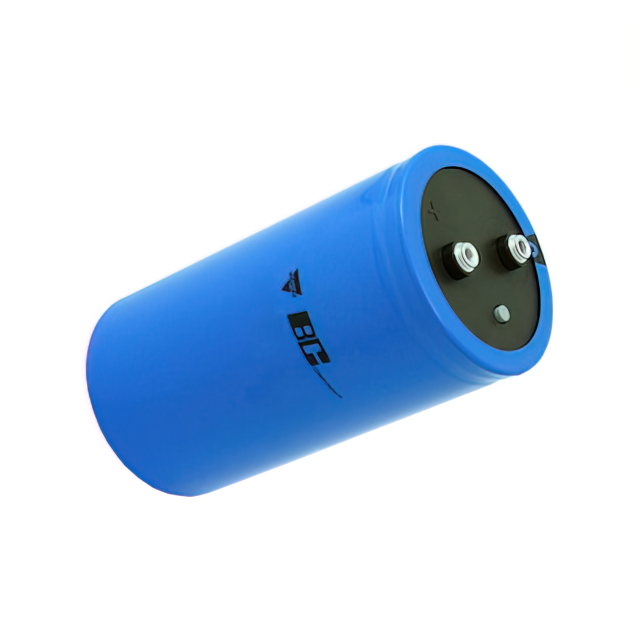

MAL220212152E3
CAP ALUM 1500UF 20% 200V SCREWManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
1500 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 82mOhm @ 100Hz 10000 Hrs @ 85°C
Additional Information
Series: 202 PML-STRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Box |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 1.390"" Dia (35.30mm) |
| Polarization | Polar |
| Mounting Type | Clamp Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.504"" (12.80mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 82mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 2.531"" (64.30mm) |
| Capacitance | 1500 µF |
| Voltage - Rated | 200 V |
| Impedance | 54 mOhms |
| Ripple Current @ Low Frequency | 4.86 A @ 100 Hz |
| Ripple Current @ High Frequency | 7.29 A @ 10 kHz |
Request a Quote
