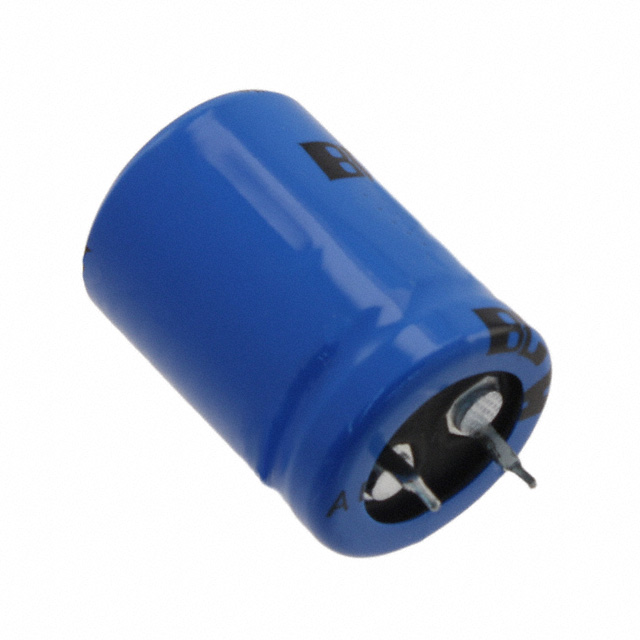

MAL215959689E3
CAP ALUM 68UF 20% 500V SNAP THManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components MAL215959689E3 is a 68 µF, ±20% tolerance aluminum electrolytic capacitor from the 159 PUL-SI series. Rated for 500 V, this polar capacitor features a radial, can-style snap-in package with a 10.00mm lead spacing and a maximum seated height of 32.00mm. It exhibits an Equivalent Series Resistance (ESR) of 1.22 Ohms at 100Hz and an impedance of 850 mOhms. The component is designed for through-hole mounting and offers a rated lifetime of 5000 hours at 105°C, with a ripple current capability of 600 mA at 120 Hz. Operating temperature ranges from -25°C to 105°C, making it suitable for general purpose applications in industries such as industrial power supplies and renewable energy systems.
Additional Information
Series: 159 PUL-SIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 0.866"" Dia (22.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.394"" (10.00mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 1.22Ohm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.260"" (32.00mm) |
| Capacitance | 68 µF |
| Voltage - Rated | 500 V |
| Impedance | 850 mOhms |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz |
