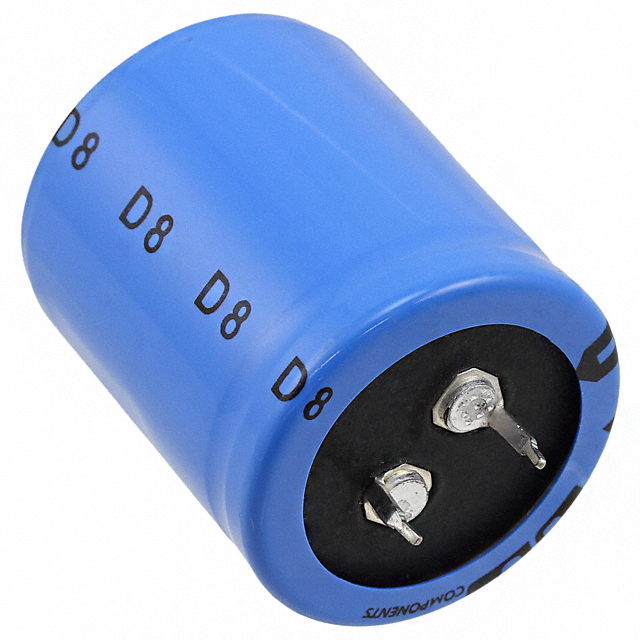

MAL215959181E3
CAP ALUM 180UF 20% 500V SNAP THManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components' MAL215959181E3 is a 180 µF, 500 V polarized aluminum electrolytic capacitor from the 159 PUL-SI series. Featuring a radial, can snap-in package, this component offers a low ESR of 480 mOhm at 100Hz and an impedance of 350 mOhms. It is rated for a lifespan of 5000 hours at 105°C and operates across a temperature range of -25°C to 105°C. The through-hole mounting type and 10.00mm lead spacing are suitable for general-purpose applications across various industries including power supplies, industrial automation, and renewable energy systems. The capacitor's dimensions are 30.00mm in diameter and 37.00mm in height.
Additional Information
Series: 159 PUL-SIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.181"" Dia (30.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.394"" (10.00mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 480mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.457"" (37.00mm) |
| Capacitance | 180 µF |
| Voltage - Rated | 500 V |
| Impedance | 350 mOhms |
| Ripple Current @ Low Frequency | 1.13 A @ 120 Hz |
