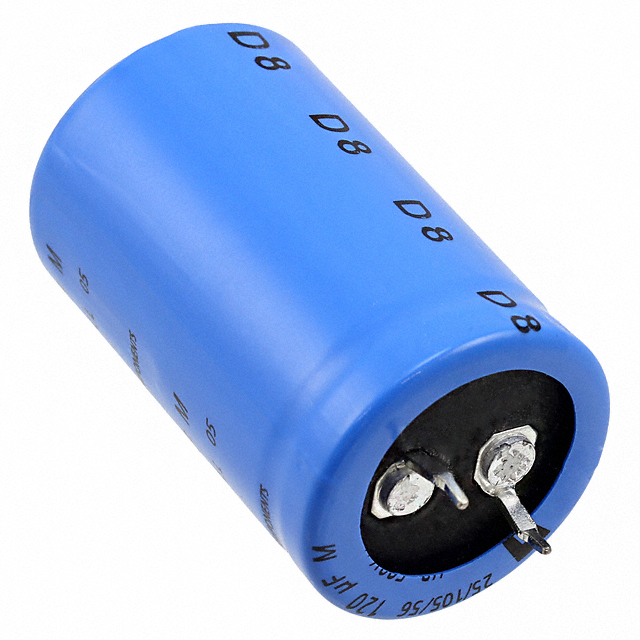

MAL215959121E3

CAP ALUM 120UF 20% 500V SNAP TH

Manufacturer: Vishay Beyschlag/Draloric/BC Components

Categories: Aluminum Electrolytic Capacitors

Quality Control: Learn More

Vishay Beyschlag/Draloric/BC Components 159 PUL-SI series MAL215959121E3 is a 120 µF, 500 V polarized aluminum electrolytic capacitor with a radial, can snap-in package. It features a 20% capacitance tolerance and an Equivalent Series Resistance (ESR) of 700 mOhm at 100Hz. The component offers a rated ripple current of 910 mA at 120 Hz and a rated lifetime of 5000 hours at 105°C. With a diameter of 0.984 inches (25.00mm) and a height of 1.654 inches (42.00mm), it has a lead spacing of 0.394 inches (10.00mm). The operating temperature range is -25°C to 105°C. This capacitor is suitable for general-purpose applications in industries such as industrial power supplies and energy storage.

Additional Information

Series: 159 PUL-SIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
Tolerance±20%
PackagingBulk
Package / CaseRadial, Can - Snap-In
Size / Dimension0.984"" Dia (25.00mm)
PolarizationPolar
Mounting TypeThrough Hole
Operating Temperature-25°C ~ 105°C
ApplicationsGeneral Purpose
Lead Spacing0.394"" (10.00mm)
Ratings-
ESR (Equivalent Series Resistance)700mOhm @ 100Hz
Lifetime @ Temp.5000 Hrs @ 105°C
Surface Mount Land Size-
Height - Seated (Max)1.654"" (42.00mm)
Capacitance120 µF
Voltage - Rated500 V
Impedance490 mOhms
Ripple Current @ Low Frequency910 mA @ 120 Hz
