MAL211939109E3
CAP ALUM 10UF 100V AXIAL THManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
10 µF 100 V Aluminum Electrolytic Capacitors Axial, Can 13Ohm @ 100Hz 4000 Hrs @ 125°C
Additional Information
Series: 119 AHT-DINRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | -10%, +50% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Axial, Can |
| Size / Dimension | 0.315"" Dia x 0.709"" L (8.00mm x 18.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 13Ohm @ 100Hz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | - |
| Capacitance | 10 µF |
| Voltage - Rated | 100 V |
| Impedance | 6 Ohms |
| Ripple Current @ Low Frequency | 70 mA @ 100 Hz |
Request a Quote
Clients Also Buy

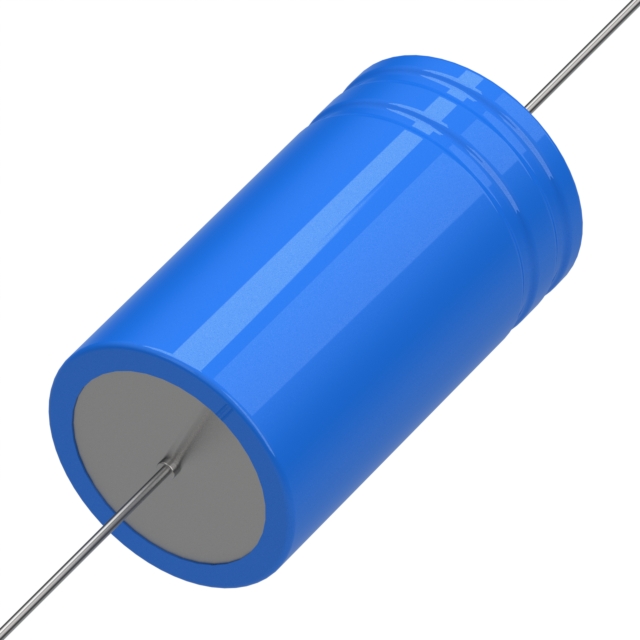

MAL211914102E3
