MAL210413682E3

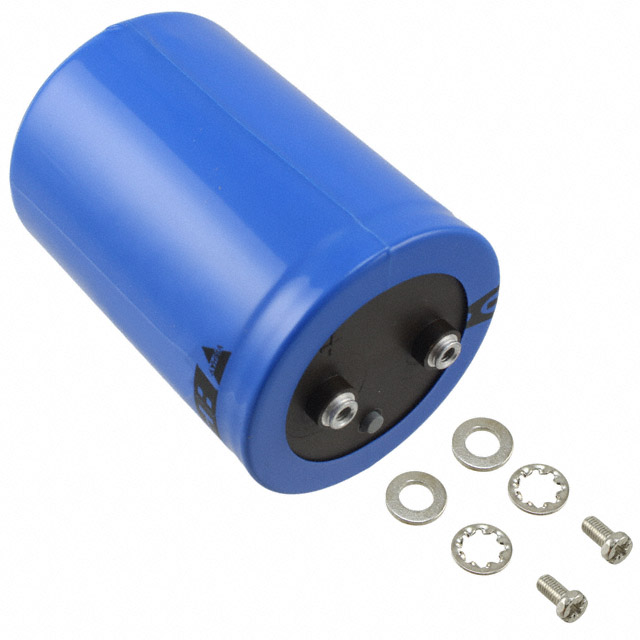

CAP ALUM 6800UF 20% 250V SCREWManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
6800 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20mOhm 5000 Hrs @ 105°C
Additional Information
Series: 104 PHL-STRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.992"" Dia (76.00mm) |
| Polarization | - |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 1.252"" (31.80mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 4.205"" (106.80mm) |
| Capacitance | 6800 µF |
| Voltage - Rated | 250 V |
| Impedance | 12 mOhms |
| Ripple Current @ High Frequency | 22.5 A @ 10 kHz |
