MAL210118473E3
CAP ALUM 47000UF 20% 63V SCREWManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
47000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 10mOhm @ 100Hz 15000 Hrs @ 85°C
Additional Information
Series: 101 PHR-STRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.559"" Dia (65.00mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.122"" (28.50mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 10mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 4.165"" (105.80mm) |
| Capacitance | 47000 µF |
| Voltage - Rated | 63 V |
| Impedance | 8 mOhms |
| Ripple Current @ High Frequency | 20.28 A @ 10 kHz |
Request a Quote
Clients Also Buy

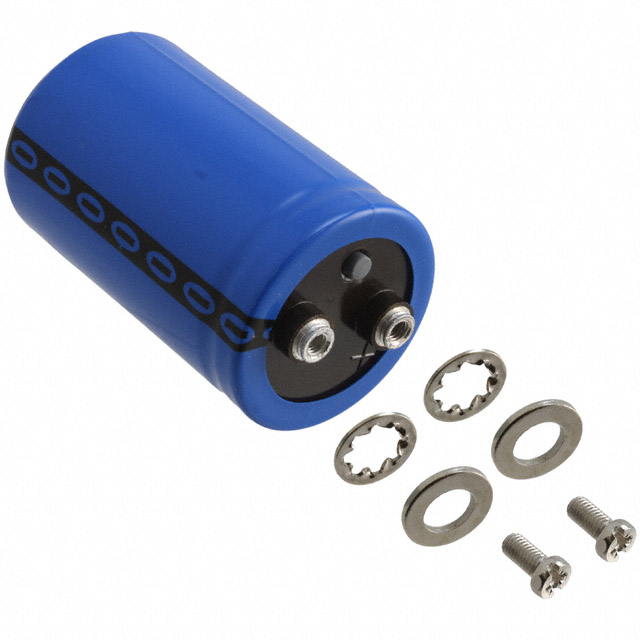

MAL210116104E3
CAP ALUM 100000UF 20% 25V SCREW
MAL210116153E3
CAP ALUM 15000UF 20% 25V SCREW

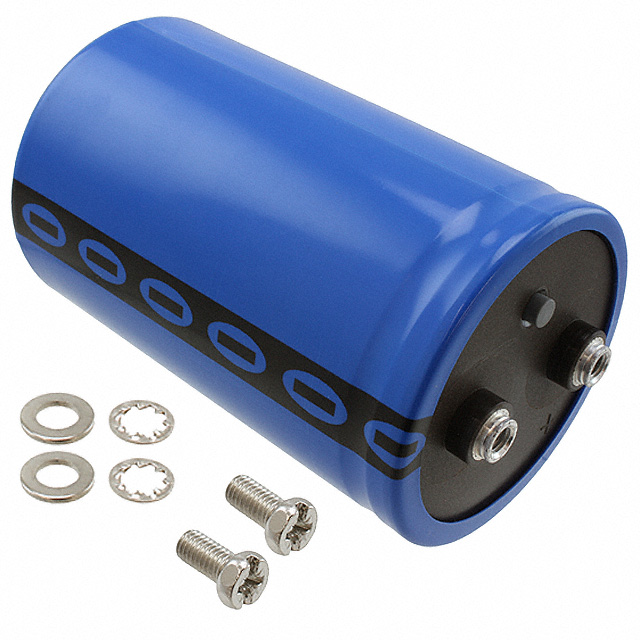

MAL210116154E3
