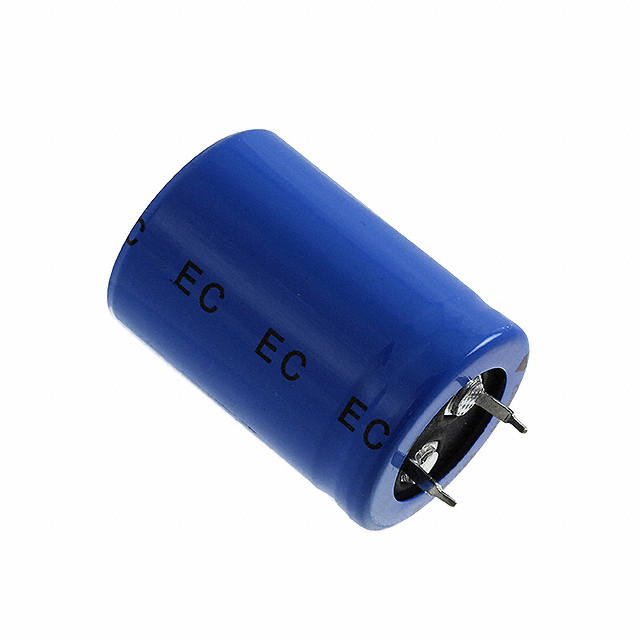

MAL209342681E3
CAP ALUM 680UF 20% 200V SNAP THManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
680 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 210mOhm @ 100Hz 2000 Hrs @ 85°C
Additional Information
Series: 093 PMG-SIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 0.984"" Dia (25.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.394"" (10.00mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 210mOhm @ 100Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.457"" (37.00mm) |
| Capacitance | 680 µF |
| Voltage - Rated | 200 V |
| Impedance | 150 mOhms |
| Ripple Current @ Low Frequency | 2.06 A @ 120 Hz |
